PRIUS BEARINGS · SLEWING RING BEARING

31-20 2000/2-06740
slewing ring bearing

Review the dimensional reference and engineering data for this slewing ring bearing model. Send your application, load and mounting requirements to receive a quotation.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review

DIMENSIONAL REFERENCE

MODEL 31-20 2000/2-06740

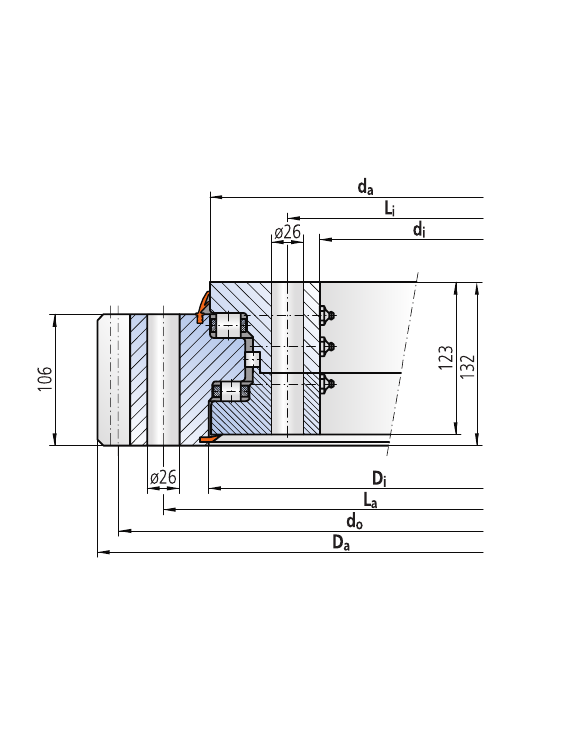

PRIUS BEARINGS 31-20 2000/2-06740 2D section drawing

Use the drawing together with the engineering data table when checking fit, mounting and replacement requirements.

ENGINEERING DATA

31-20 2000/2-06740
parameters

Key dimensions and load information for preliminary selection.

Model31-20 2000/2-06740
Brand / alternativePRIUS BEARINGS · Alternative for IMO
TypeSlewing ring bearing
Outside diameter Da (mm)2236.8
Inside diameter di (mm)1853
Raceway diameter (mm)2032
Inner / outer reference (mm)2030
Ring height H (mm)912
Outer pitch diameter (mm)2105
Inner pitch diameter (mm)1905
Mounting hole count54
Gear diameter (mm)2192
Gear module16
Gear tooth count137
Tooth correction+0.50
Tooth force, nominal (kN)163
Tooth force, maximum (kN)285
Basic static radial load rating C0r (kN)951
Basic static axial load rating C0a (kN)11812
Static moment (kNm)7086
Basic dynamic radial load rating Cr (kN)509
Basic dynamic axial load rating Ca (kN)1768
Dynamic moment (kNm)1299
