PRIUS BEARINGS · SLEWING RING BEARING

31-25 2800/2-06840
slewing ring bearing

Review the dimensional reference and engineering data for this slewing ring bearing model. Send your application, load and mounting requirements to receive a quotation.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review

DIMENSIONAL REFERENCE

MODEL 31-25 2800/2-06840

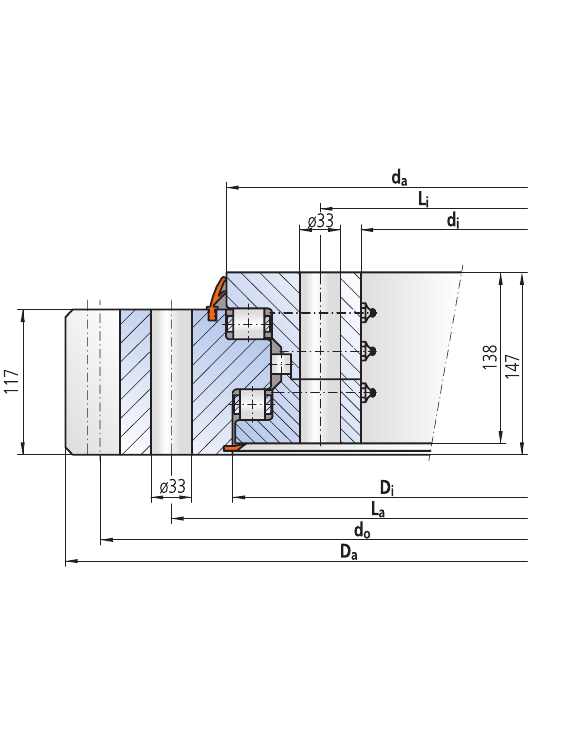

PRIUS BEARINGS 31-25 2800/2-06840 2D section drawing

Use the drawing together with the engineering data table when checking fit, mounting and replacement requirements.

ENGINEERING DATA

31-25 2800/2-06840
parameters

Key dimensions and load information for preliminary selection.

Model31-25 2800/2-06840
Brand / alternativePRIUS BEARINGS · Alternative for IMO
TypeSlewing ring bearing
Outside diameter Da (mm)3096.0
Inside diameter di (mm)2619
Raceway diameter (mm)2826
Inner / outer reference (mm)2836
Ring height H (mm)1785
Outer pitch diameter (mm)2925
Inner pitch diameter (mm)2685
Mounting hole count60
Gear diameter (mm)3040
Gear module20
Gear tooth count152
Tooth correction+0.50
Tooth force, nominal (kN)232
Tooth force, maximum (kN)407
Basic static radial load rating C0r (kN)2118
Basic static axial load rating C0a (kN)20232
Static moment (kNm)11850
Basic dynamic radial load rating Cr (kN)890
Basic dynamic axial load rating Ca (kN)2908
Dynamic moment (kNm)2132
