PRIUS BEARINGS · SLEWING RING BEARING

31-40 3150/2-07430
slewing ring bearing

Review the dimensional reference and engineering data for this slewing ring bearing model. Send your application, load and mounting requirements to receive a quotation.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review

DIMENSIONAL REFERENCE

MODEL 31-40 3150/2-07430

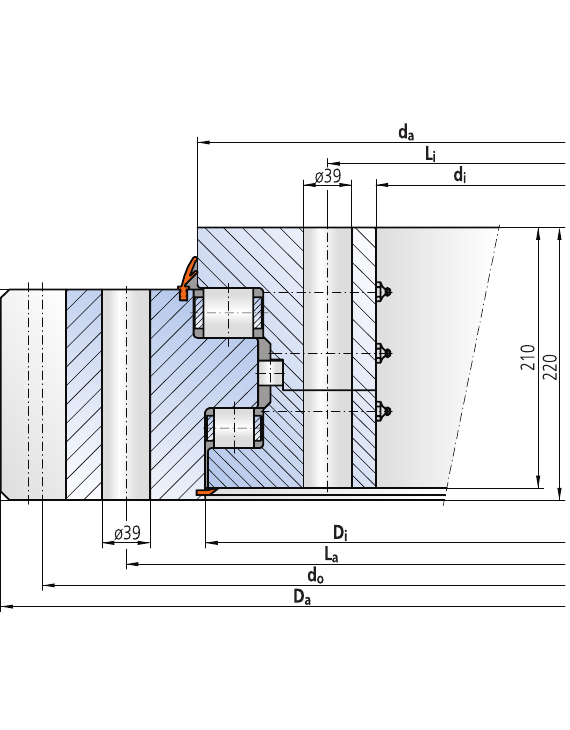

PRIUS BEARINGS 31-40 3150/2-07430 2D section drawing

Use the drawing together with the engineering data table when checking fit, mounting and replacement requirements.

ENGINEERING DATA

31-40 3150/2-07430
parameters

Key dimensions and load information for preliminary selection.

Model31-40 3150/2-07430
Brand / alternativePRIUS BEARINGS · Alternative for IMO
TypeSlewing ring bearing
Outside diameter Da (mm)3515.6
Inside diameter di (mm)2912
Raceway diameter (mm)3187
Inner / outer reference (mm)3200
Ring height H (mm)3812
Outer pitch diameter (mm)3315
Inner pitch diameter (mm)2990
Mounting hole count56
Gear diameter (mm)3454
Gear module22
Gear tooth count157
Tooth correction+0.50
Tooth force, nominal (kN)338
Tooth force, maximum (kN)605
Basic static radial load rating C0r (kN)2633
Basic static axial load rating C0a (kN)31469
Static moment (kNm)17077
Basic dynamic radial load rating Cr (kN)1186
Basic dynamic axial load rating Ca (kN)5834
Dynamic moment (kNm)4344
Confirm dimensions & request a quote →

NEED A MATCH?

Send us your
drawing or load case.

We can review the mounting envelope, load requirements and delivery target for a PRIUS BEARINGS slewing ring alternative.

Start an enquiry →

MODEL SELECTION

Related slewing
ring bearings

Compare nearby model references or send us your current bearing number for a dimensional cross-check.

Liebherr · Slewing ring bearingKUD 00855View dimensions and engineering data →Liebherr · Slewing ring bearingKUD00762View dimensions and engineering data →Liebherr · Slewing ring bearingKUD00855View dimensions and engineering data →Liebherr · Slewing ring bearingKUD00914View dimensions and engineering data →

FREQUENT QUESTIONS

Can PRIUS BEARINGS supply this slewing ring bearing model?

We review the model, dimensions, load case, mounting arrangement and quantity before confirming a quotation.

What information is needed for selection?

Please provide the bearing model, outside and inside dimensions, height, gear configuration, mounting-hole details, loads and operating speed.

Can you check an alternative from a drawing or sample?

Yes. Upload a drawing, catalogue page or clear photos and our team can check the fit before quotation.
