Slewing Rings/PRIUS BEARINGS/32-25 2000/2-06860← View all models

PRIUS BEARINGS · SLEWING RING BEARING

32-25 2000/2-06860
slewing ring bearing

Review the dimensional reference and engineering data for this slewing ring bearing model. Send your application, load and mounting requirements to receive a quotation.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review

DIMENSIONAL REFERENCE

MODEL 32-25 2000/2-06860

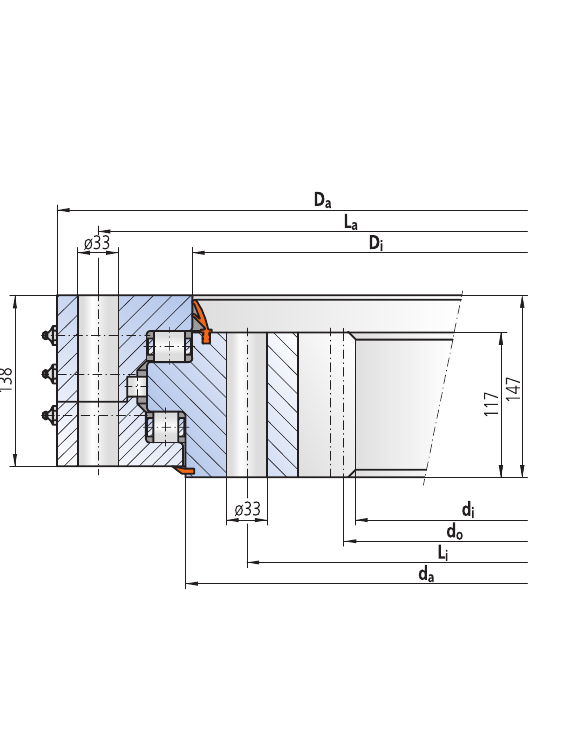

PRIUS BEARINGS 32-25 2000/2-06860 2D section drawing

Use the drawing together with the engineering data table when checking fit, mounting and replacement requirements.

ENGINEERING DATA

32-25 2000/2-06860
parameters

Key dimensions and load information for preliminary selection.

Model32-25 2000/2-06860
Brand / alternativePRIUS BEARINGS · Alternative for IMO
TypeSlewing ring bearing
Outside diameter Da (mm)2181
Inside diameter di (mm)1728
Raceway diameter (mm)1963
Inner / outer reference (mm)1974
Ring height H (mm)1202
Outer pitch diameter (mm)2115
Inner pitch diameter (mm)1875
Mounting hole count44
Gear diameter (mm)1744
Gear module16
Gear tooth count109
Tooth correction-0.50
Tooth force, nominal (kN)185
Tooth force, maximum (kN)342
Basic static radial load rating C0r (kN)1577
Basic static axial load rating C0a (kN)14451
Static moment (kNm)8508
Basic dynamic radial load rating Cr (kN)762
Basic dynamic axial load rating Ca (kN)2417
Dynamic moment (kNm)1773
Confirm dimensions & request a quote →

NEED A MATCH?

Send us your
drawing or load case.

We can review the mounting envelope, load requirements and delivery target for a PRIUS BEARINGS slewing ring alternative.

Start an enquiry →

MODEL SELECTION

Related slewing
ring bearings

Compare nearby model references or send us your current bearing number for a dimensional cross-check.

Liebherr · Slewing ring bearingKUD 00855View dimensions and engineering data →Liebherr · Slewing ring bearingKUD00762View dimensions and engineering data →Liebherr · Slewing ring bearingKUD00855View dimensions and engineering data →Liebherr · Slewing ring bearingKUD00914View dimensions and engineering data →

FREQUENT QUESTIONS

Can PRIUS BEARINGS supply this slewing ring bearing model?

We review the model, dimensions, load case, mounting arrangement and quantity before confirming a quotation.

What information is needed for selection?

Please provide the bearing model, outside and inside dimensions, height, gear configuration, mounting-hole details, loads and operating speed.

Can you check an alternative from a drawing or sample?

Yes. Upload a drawing, catalogue page or clear photos and our team can check the fit before quotation.
