PRIUS BEARINGS · SLEWING RING BEARING

32-25 2240/2-06870
slewing ring bearing

Review the dimensional reference and engineering data for this slewing ring bearing model. Send your application, load and mounting requirements to receive a quotation.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review

DIMENSIONAL REFERENCE

MODEL 32-25 2240/2-06870

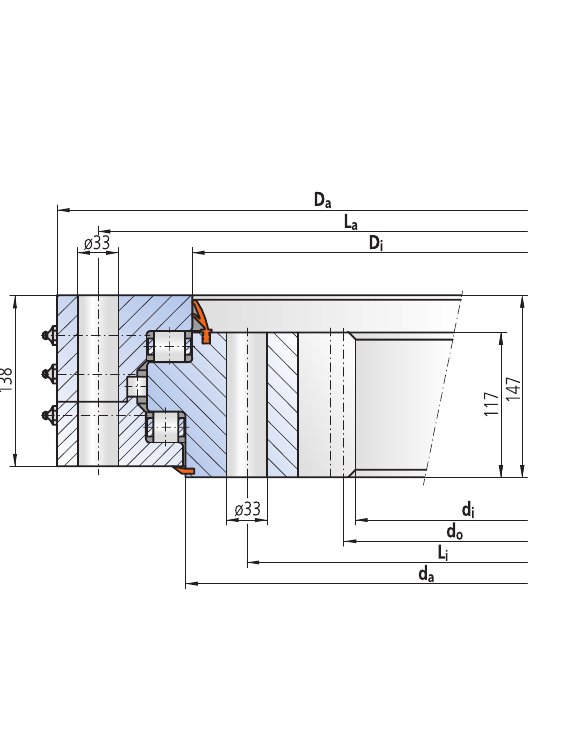

PRIUS BEARINGS 32-25 2240/2-06870 2D section drawing

Use the drawing together with the engineering data table when checking fit, mounting and replacement requirements.

ENGINEERING DATA

32-25 2240/2-06870
parameters

Key dimensions and load information for preliminary selection.

Model32-25 2240/2-06870
Brand / alternativePRIUS BEARINGS · Alternative for IMO
TypeSlewing ring bearing
Outside diameter Da (mm)2421
Inside diameter di (mm)1944
Raceway diameter (mm)2203
Inner / outer reference (mm)2214
Ring height H (mm)1406
Outer pitch diameter (mm)2355
Inner pitch diameter (mm)2115
Mounting hole count48
Gear diameter (mm)1962
Gear module18
Gear tooth count109
Tooth correction-0.50
Tooth force, nominal (kN)217
Tooth force, maximum (kN)394
Basic static radial load rating C0r (kN)1763
Basic static axial load rating C0a (kN)16185
Static moment (kNm)9526
Basic dynamic radial load rating Cr (kN)808
Basic dynamic axial load rating Ca (kN)2559
Dynamic moment (kNm)1886
