PRIUS BEARINGS · SLEWING RING BEARING

32-32 2240/2-07360
slewing ring bearing

Review the dimensional reference and engineering data for this slewing ring bearing model. Send your application, load and mounting requirements to receive a quotation.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review

DIMENSIONAL REFERENCE

MODEL 32-32 2240/2-07360

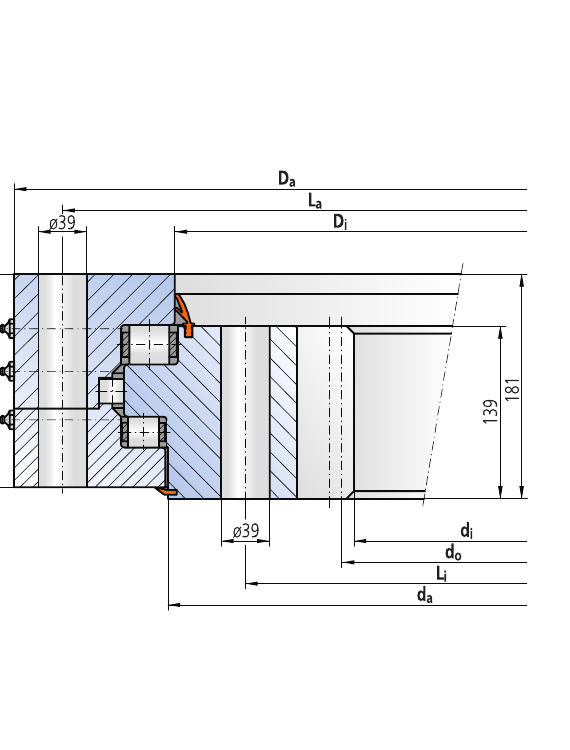

PRIUS BEARINGS 32-32 2240/2-07360 2D section drawing

Use the drawing together with the engineering data table when checking fit, mounting and replacement requirements.

ENGINEERING DATA

32-32 2240/2-07360
parameters

Key dimensions and load information for preliminary selection.

Model32-32 2240/2-07360
Brand / alternativePRIUS BEARINGS · Alternative for IMO
TypeSlewing ring bearing
Outside diameter Da (mm)2458
Inside diameter di (mm)1908
Raceway diameter (mm)2199
Inner / outer reference (mm)2210
Ring height H (mm)2010
Outer pitch diameter (mm)2380
Inner pitch diameter (mm)2085
Mounting hole count40
Gear diameter (mm)1926
Gear module18
Gear tooth count107
Tooth correction-0.50
Tooth force, nominal (kN)240
Tooth force, maximum (kN)445
Basic static radial load rating C0r (kN)1966
Basic static axial load rating C0a (kN)19352
Static moment (kNm)11658
Basic dynamic radial load rating Cr (kN)1017
Basic dynamic axial load rating Ca (kN)3600
Dynamic moment (kNm)2583
