PRIUS BEARINGS · SLEWING RING BEARING

32-40 3550/2-07490
slewing ring bearing

Review the dimensional reference and engineering data for this slewing ring bearing model. Send your application, load and mounting requirements to receive a quotation.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review

DIMENSIONAL REFERENCE

MODEL 32-40 3550/2-07490

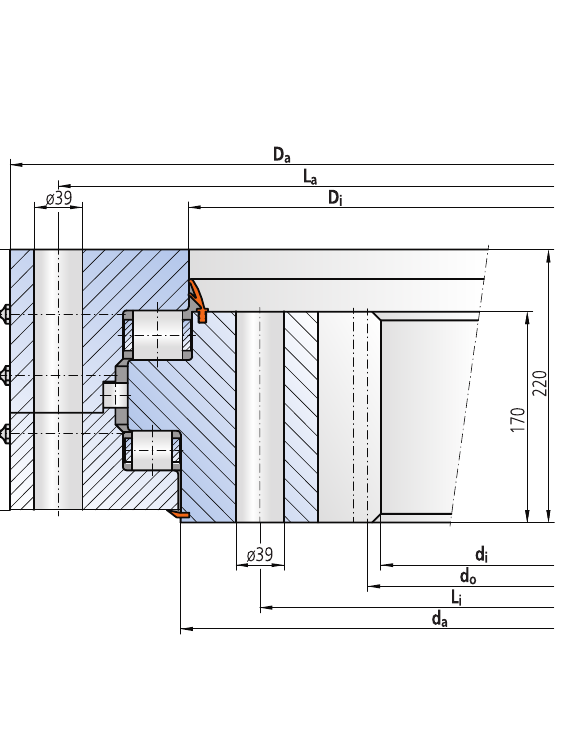

PRIUS BEARINGS 32-40 3550/2-07490 2D section drawing

Use the drawing together with the engineering data table when checking fit, mounting and replacement requirements.

ENGINEERING DATA

32-40 3550/2-07490
parameters

Key dimensions and load information for preliminary selection.

Model32-40 3550/2-07490
Brand / alternativePRIUS BEARINGS · Alternative for IMO
TypeSlewing ring bearing
Outside diameter Da (mm)3788
Inside diameter di (mm)3190
Raceway diameter (mm)3500
Inner / outer reference (mm)3513
Ring height H (mm)4171
Outer pitch diameter (mm)3710
Inner pitch diameter (mm)3385
Mounting hole count66
Gear diameter (mm)3212
Gear module22
Gear tooth count146
Tooth correction-0.50
Tooth force, nominal (kN)357
Tooth force, maximum (kN)658
Basic static radial load rating C0r (kN)3093
Basic static axial load rating C0a (kN)35465
Static moment (kNm)19561
Basic dynamic radial load rating Cr (kN)1292
Basic dynamic axial load rating Ca (kN)6268
Dynamic moment (kNm)4601
Confirm dimensions & request a quote →

NEED A MATCH?

Send us your
drawing or load case.

We can review the mounting envelope, load requirements and delivery target for a PRIUS BEARINGS slewing ring alternative.

Start an enquiry →

MODEL SELECTION

Related slewing
ring bearings

Compare nearby model references or send us your current bearing number for a dimensional cross-check.

Liebherr · Slewing ring bearingKUD 00855View dimensions and engineering data →Liebherr · Slewing ring bearingKUD00762View dimensions and engineering data →Liebherr · Slewing ring bearingKUD00855View dimensions and engineering data →Liebherr · Slewing ring bearingKUD00914View dimensions and engineering data →

FREQUENT QUESTIONS

Can PRIUS BEARINGS supply this slewing ring bearing model?

We review the model, dimensions, load case, mounting arrangement and quantity before confirming a quotation.

What information is needed for selection?

Please provide the bearing model, outside and inside dimensions, height, gear configuration, mounting-hole details, loads and operating speed.

Can you check an alternative from a drawing or sample?

Yes. Upload a drawing, catalogue page or clear photos and our team can check the fit before quotation.
