Slewing Rings/PRIUS BEARINGS/KH-325E← View all models

PRIUS BEARINGS · SLEWING RING BEARING

KH-325E
slewing ring bearing

Review the dimensional reference and engineering data for this slewing ring bearing model. Send your application, load and mounting requirements to receive a quotation.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review
PRIUS BEARINGS KH-325E external gear slewing ring bearingEXTERNAL GEAR / KH-325E

DIMENSIONAL REFERENCE

MODEL KH-325E

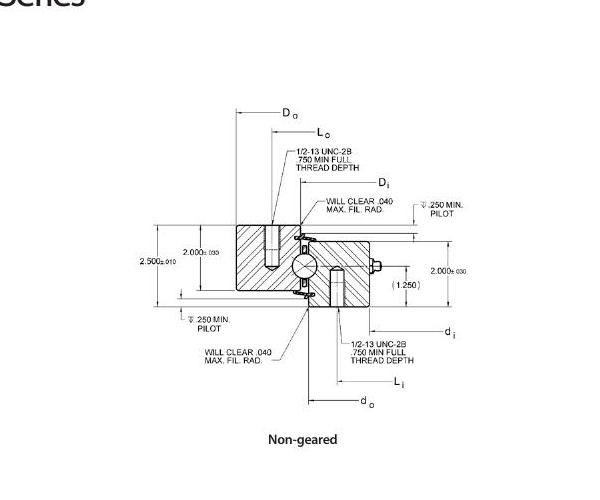

PRIUS BEARINGS KH-325E 2D section drawing

Use the drawing together with the engineering data table when checking fit, mounting and replacement requirements.

ENGINEERING DATA

KH-325E
parameters

Key dimensions and load information for preliminary selection.

ModelKH-325E
Brand / alternativePRIUS BEARINGS · Alternative for Kaydon
TypeSlewing ring bearing
Outside diameter OD (in)36.700 in
Inside diameter ID (in)28.500 in
Pitch diameter (in)32.750 in
Inner reference diameter (in)32.250 in
Outer hole circle OBC (in)34.500 in
Inner hole circle IBC (in)30.500 in
Mounting hole count28
Weight (lb)220 lb
Dynamic axial capacity (lb)45,000 lb
Intermittent axial capacity (lb)167,000 lb
Dynamic Moment Ft Lb48,100 ft-lb
Intermittent Moment Ft Lb92,000 ft-lb
Confirm dimensions & request a quote →

NEED A MATCH?

Send us your
drawing or load case.

We can review the mounting envelope, load requirements and delivery target for a PRIUS BEARINGS slewing ring alternative.

Start an enquiry →

MODEL SELECTION

Related slewing
ring bearings

Compare nearby model references or send us your current bearing number for a dimensional cross-check.

Kaydon · Slewing ring bearingKH-125EView dimensions and engineering data →Kaydon · Slewing ring bearingKH-166EView dimensions and engineering data →Kaydon · Slewing ring bearingKH-225EView dimensions and engineering data →Kaydon · Slewing ring bearingKH-275EView dimensions and engineering data →

FREQUENT QUESTIONS

Can PRIUS BEARINGS supply this slewing ring bearing model?

We review the model, dimensions, load case, mounting arrangement and quantity before confirming a quotation.

What information is needed for selection?

Please provide the bearing model, outside and inside dimensions, height, gear configuration, mounting-hole details, loads and operating speed.

Can you check an alternative from a drawing or sample?

Yes. Upload a drawing, catalogue page or clear photos and our team can check the fit before quotation.
