Slewing Rings/PRIUS BEARINGS/MTO-050← View all models

PRIUS BEARINGS · SLEWING RING BEARING

MTO-050
slewing ring bearing

Review the dimensional reference and engineering data for this slewing ring bearing model. Send your application, load and mounting requirements to receive a quotation.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review

DIMENSIONAL REFERENCE

MODEL MTO-050

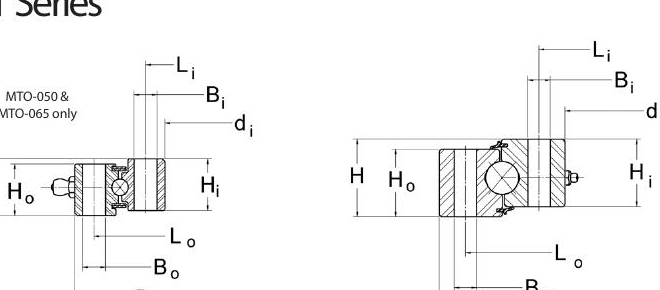

PRIUS BEARINGS MTO-050 2D section drawing

Use the drawing together with the engineering data table when checking fit, mounting and replacement requirements.

ENGINEERING DATA

MTO-050
parameters

Key dimensions and load information for preliminary selection.

ModelMTO-050
Brand / alternativePRIUS BEARINGS · Alternative for Kaydon
TypeSlewing ring bearing
Outside diameter OD (in)4.331 in
Inside diameter ID (in)1.968 in
Overall height HT (in)0.787 in
Reference height (in)0.728 in
Weight (lb)2 lb
Gear ConfigurationNo gear
Outer hole circle OBC (in)3.818 in
Inner hole circle IBC (in)2.480 in
Mounting hole count8 / 8
Bolt diameter (mm)0.260 in
Moment rating (ft-lb)675 ft-lb
Mounting ConfigurationInch bolts
Confirm dimensions & request a quote →

NEED A MATCH?

Send us your
drawing or load case.

We can review the mounting envelope, load requirements and delivery target for a PRIUS BEARINGS slewing ring alternative.

Start an enquiry →

MODEL SELECTION

Related slewing
ring bearings

Compare nearby model references or send us your current bearing number for a dimensional cross-check.

Liebherr · Slewing ring bearingKUD 00855View dimensions and engineering data →Liebherr · Slewing ring bearingKUD00762View dimensions and engineering data →Liebherr · Slewing ring bearingKUD00855View dimensions and engineering data →Liebherr · Slewing ring bearingKUD00914View dimensions and engineering data →

FREQUENT QUESTIONS

Can PRIUS BEARINGS supply this slewing ring bearing model?

We review the model, dimensions, load case, mounting arrangement and quantity before confirming a quotation.

What information is needed for selection?

Please provide the bearing model, outside and inside dimensions, height, gear configuration, mounting-hole details, loads and operating speed.

Can you check an alternative from a drawing or sample?

Yes. Upload a drawing, catalogue page or clear photos and our team can check the fit before quotation.
