PRIUS BEARINGS · SLEWING RING BEARING

KUD01806
slewing ring bearing

Review the dimensional reference and engineering data for this slewing ring bearing model. Send your application, load and mounting requirements to receive a quotation.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review

DIMENSIONAL REFERENCE

MODEL KUD01806

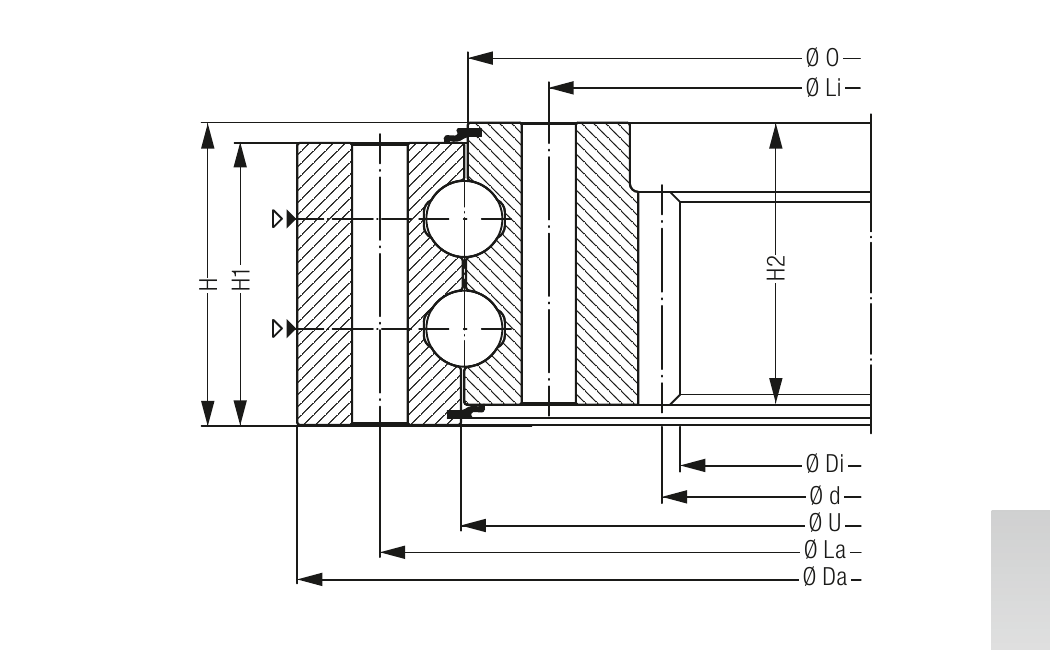

PRIUS BEARINGS KUD01806 2D section drawing

Use the drawing together with the engineering data table when checking fit, mounting and replacement requirements.

ENGINEERING DATA

KUD01806
parameters

Key dimensions and load information for preliminary selection.

ModelKUD01806
Brand / alternativePRIUS BEARINGS · Alternative for Liebherr
TypeSlewing ring bearing
Weight (kg)925 kg
Outside diameter Da (mm)1,954 mm
Inside diameter di (mm)1,598.4 mm
Ring height H (mm)154 mm
Outer reference ØO (mm)1,804 mm
Inner reference ØU (mm)1,808 mm
Outer ring height H1 (mm)142 mm
Inner ring height H2 (mm)142 mm
Outer mounting length La (mm)1,894 mm
Inner mounting length Li (mm)1,715 mm
Mounting hole count52
Bolt diameter (mm)27 mm
Hole pitch diameter d (mm)1,608 mm
Gear module12
Gear tooth count-134
Tooth correction-6
Tip Reduction-1.2
Tooth width b (mm)120 mm
Tooth force, standard (kN)132.2 kN
Tooth force, maximum (kN)264.3 kN
Basic static axial load rating C0a (kN)21,045 kN
Basic dynamic axial load rating Ca (kN)1,516 kN
Bearing typeKUD 40 WJ internal gear
Confirm dimensions & request a quote →
