PRIUS BEARINGS · SLEWING RING BEARING

KUD01906
slewing ring bearing

Review the dimensional reference and engineering data for this slewing ring bearing model. Send your application, load and mounting requirements to receive a quotation.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review

DIMENSIONAL REFERENCE

MODEL KUD01906

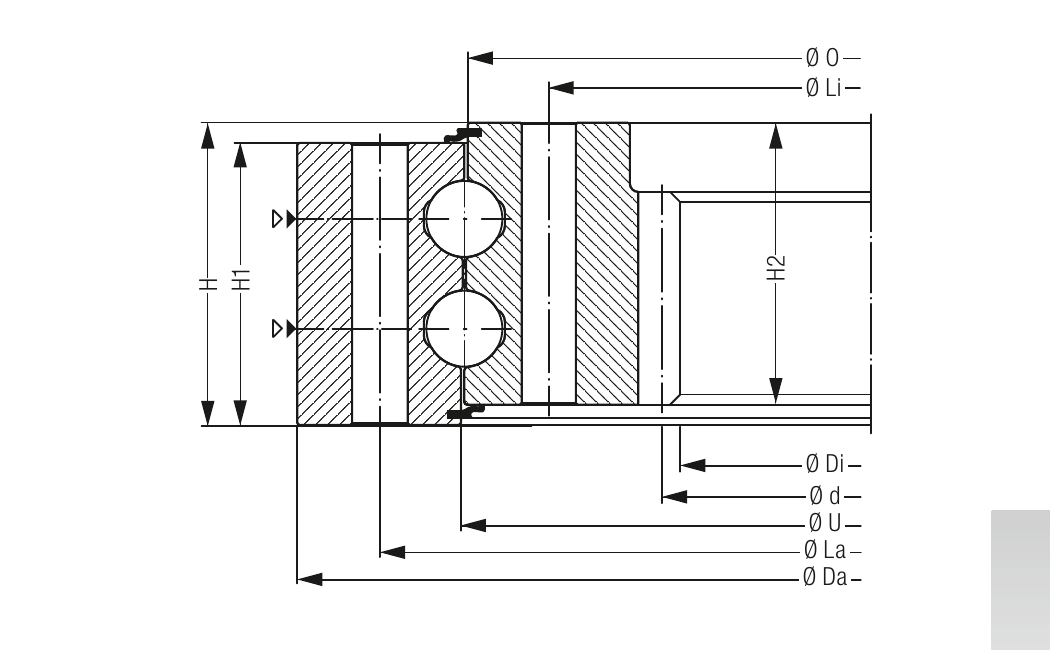

PRIUS BEARINGS KUD01906 2D section drawing

Use the drawing together with the engineering data table when checking fit, mounting and replacement requirements.

ENGINEERING DATA

KUD01906
parameters

Key dimensions and load information for preliminary selection.

ModelKUD01906
Brand / alternativePRIUS BEARINGS · Alternative for Liebherr
TypeSlewing ring bearing
Weight (kg)630 kg
Outside diameter Da (mm)2,017 mm
Inside diameter di (mm)1,730.4 mm
Ring height H (mm)123 mm
Outer reference ØO (mm)1,904 mm
Inner reference ØU (mm)1,908 mm
Outer ring height H1 (mm)111 mm
Inner ring height H2 (mm)111 mm
Outer mounting length La (mm)1,973 mm
Inner mounting length Li (mm)1,836 mm
Mounting hole count60
Bolt diameter (mm)20 mm
Hole pitch diameter d (mm)1,740 mm
Gear module12
Gear tooth count-145
Tooth correction-6
Tip Reduction-1.2
Tooth width b (mm)111 mm
Tooth force, standard (kN)128.7 kN
Tooth force, maximum (kN)257.4 kN
Basic static axial load rating C0a (kN)16,663 kN
Basic dynamic axial load rating Ca (kN)1,150 kN
Bearing typeKUD 30 WJ internal gear
Confirm dimensions & request a quote →
