PRIUS BEARINGS · SLEWING RING BEARING

KUD02100-050VA15-900-000
slewing ring bearing

Review the dimensional reference and engineering data for this slewing ring bearing model. Send your application, load and mounting requirements to receive a quotation.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review
PRIUS BEARINGS KUD02100-050VA15-900-000 external gear slewing ring bearingEXTERNAL GEAR / KUD02100-050VA15-900-000

DIMENSIONAL REFERENCE

MODEL KUD02100-050VA15-900-000

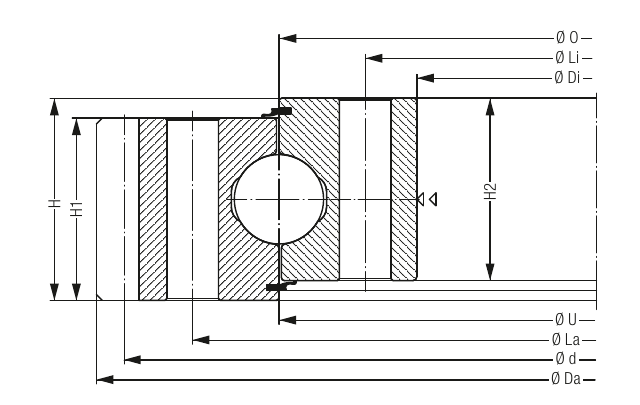

PRIUS BEARINGS KUD02100-050VA15-900-000 2D section drawing

Use the drawing together with the engineering data table when checking fit, mounting and replacement requirements.

ENGINEERING DATA

KUD02100-050VA15-900-000
parameters

Key dimensions and load information for preliminary selection.

ModelKUD02100-050VA15-900-000
Brand / alternativePRIUS BEARINGS · Alternative for Liebherr
TypeSlewing ring bearing
Weight (kg)1,029 kg
Outside diameter Da (mm)2,349.2 mm
Inside diameter di (mm)1,924 mm
Ring height H (mm)124 mm
Outer pitch diameter (mm)2,204 mm
Inner pitch diameter (mm)1,996 mm
Mounting hole count60
Bolt diameter (mm)33 mm
Gear module14
Gear tooth count165
Basic static axial load rating C0a (kN)15,304 kN
Basic dynamic axial load rating Ca (kN)1,242 kN
Bearing typeKUD 050 external gear
Outer reference ØO (mm)2,100 mm
Inner reference ØU (mm)2,100 mm
Outer ring height H1 (mm)112 mm
Inner ring height H2 (mm)112 mm
Outer mounting length La (mm)2,204 mm
Inner mounting length Li (mm)1,996 mm
Pinion tooth count z165
Pinion pitch diameter Pd (mm)2,310 mm
Confirm dimensions & request a quote →

NEED A MATCH?

Send us your
drawing or load case.

We can review the mounting envelope, load requirements and delivery target for a PRIUS BEARINGS slewing ring alternative.

Start an enquiry →

MODEL SELECTION

Related slewing
ring bearings

Compare nearby model references or send us your current bearing number for a dimensional cross-check.

Liebherr · Slewing ring bearingKUD02200-050VA15-900-000View dimensions and engineering data →Liebherr · Slewing ring bearingKUD02300-050VA15-900-000View dimensions and engineering data →Liebherr · Slewing ring bearingKUD02400-050VA15-900-000View dimensions and engineering data →Liebherr · Slewing ring bearingKUD02500-050VA15-900-000View dimensions and engineering data →

FREQUENT QUESTIONS

Can PRIUS BEARINGS supply this slewing ring bearing model?

We review the model, dimensions, load case, mounting arrangement and quantity before confirming a quotation.

What information is needed for selection?

Please provide the bearing model, outside and inside dimensions, height, gear configuration, mounting-hole details, loads and operating speed.

Can you check an alternative from a drawing or sample?

Yes. Upload a drawing, catalogue page or clear photos and our team can check the fit before quotation.
