PRIUS BEARINGS · SLEWING RING BEARING

ROD02547
slewing ring bearing

Review the dimensional reference and engineering data for this slewing ring bearing model. Send your application, load and mounting requirements to receive a quotation.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review

DIMENSIONAL REFERENCE

MODEL ROD02547

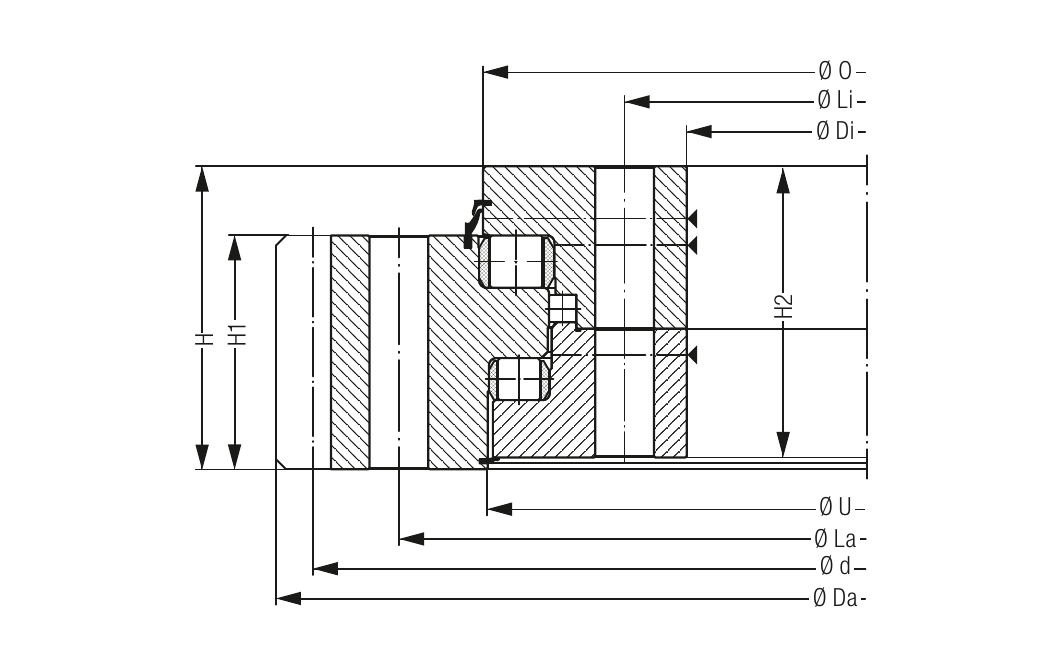

PRIUS BEARINGS ROD02547 2D section drawing

Use the drawing together with the engineering data table when checking fit, mounting and replacement requirements.

ENGINEERING DATA

ROD02547
parameters

Key dimensions and load information for preliminary selection.

ModelROD02547
Brand / alternativePRIUS BEARINGS · Alternative for Liebherr
TypeSlewing ring bearing
Weight (kg)4,714 kg
Outside diameter Da (mm)2,995 mm
Inside diameter di (mm)2,230 mm
Ring height H (mm)260 mm
Outer reference ØO (mm)2,644 mm
Inner reference ØU (mm)2,591 mm
Outer ring height H1 (mm)208 mm
Inner ring height H2 (mm)255 mm
Outer mounting length La (mm)2,784 mm
Inner mounting length Li (mm)2,344 mm
Mounting hole count72
Bolt diameter (mm)48 mm
Hole pitch diameter d (mm)2,934 mm
Gear module18
Gear tooth count163
Tooth correction14.4
Tip Reduction-1.8
Tooth width b (mm)180 mm
Tooth force, standard (kN)282 kN
Tooth force, maximum (kN)563 kN
Basic static axial load rating C0a (kN)78,925 kN
Basic dynamic axial load rating Ca (kN)7,744 kN
Bearing typeROD 40 DA external gear
Confirm dimensions & request a quote →

NEED A MATCH?

Send us your
drawing or load case.

We can review the mounting envelope, load requirements and delivery target for a PRIUS BEARINGS slewing ring alternative.

Start an enquiry →

MODEL SELECTION

Related slewing
ring bearings

Compare nearby model references or send us your current bearing number for a dimensional cross-check.

Liebherr · Slewing ring bearingKUD 00855View dimensions and engineering data →Liebherr · Slewing ring bearingKUD00762View dimensions and engineering data →Liebherr · Slewing ring bearingKUD00855View dimensions and engineering data →Liebherr · Slewing ring bearingKUD00914View dimensions and engineering data →

FREQUENT QUESTIONS

Can PRIUS BEARINGS supply this slewing ring bearing model?

We review the model, dimensions, load case, mounting arrangement and quantity before confirming a quotation.

What information is needed for selection?

Please provide the bearing model, outside and inside dimensions, height, gear configuration, mounting-hole details, loads and operating speed.

Can you check an alternative from a drawing or sample?

Yes. Upload a drawing, catalogue page or clear photos and our team can check the fit before quotation.
