PRIUS BEARINGS · SLEWING RING BEARING

ROD03312
slewing ring bearing

Review the dimensional reference and engineering data for this slewing ring bearing model. Send your application, load and mounting requirements to receive a quotation.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review

DIMENSIONAL REFERENCE

MODEL ROD03312

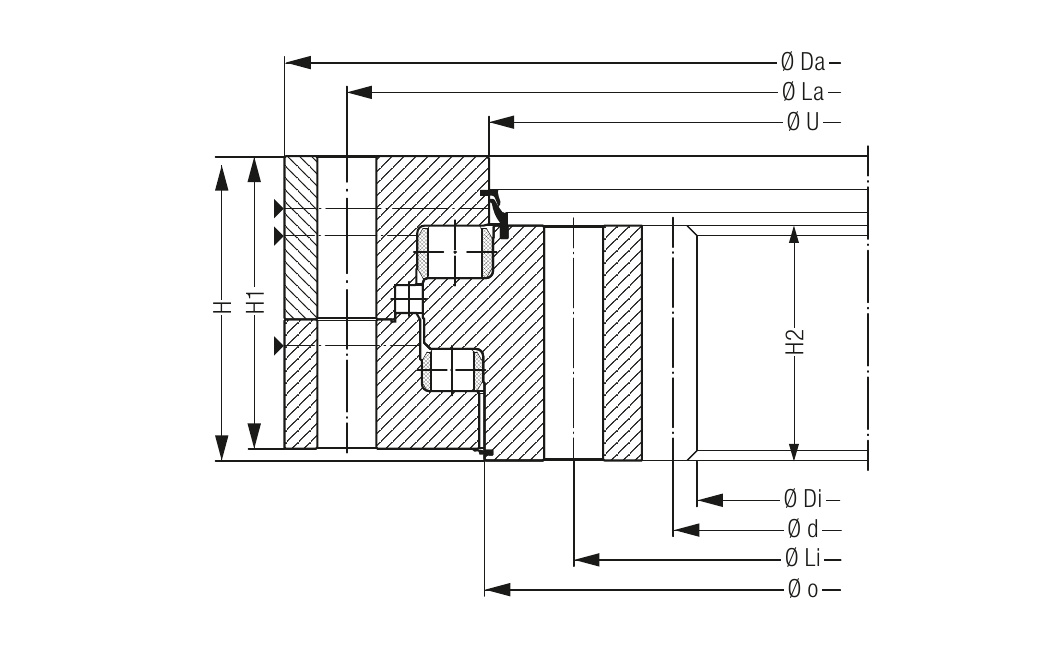

PRIUS BEARINGS ROD03312 2D section drawing

Use the drawing together with the engineering data table when checking fit, mounting and replacement requirements.

ENGINEERING DATA

ROD03312
parameters

Key dimensions and load information for preliminary selection.

ModelROD03312
Brand / alternativePRIUS BEARINGS · Alternative for Liebherr
TypeSlewing ring bearing
Weight (kg)3,665 kg
Outside diameter Da (mm)3,550 mm
Inside diameter di (mm)2,984 mm
Ring height H (mm)220 mm
Outer reference ØO (mm)3,268 mm
Inner reference ØU (mm)3,250 mm
Outer ring height H1 (mm)205 mm
Inner ring height H2 (mm)180 mm
Outer mounting length La (mm)3,466 mm
Inner mounting length Li (mm)3,162 mm
Mounting hole count100
Bolt diameter (mm)36 mm
Hole pitch diameter d (mm)3,000 mm
Gear module20
Gear tooth count-150
Tooth correction-10
Tip Reduction-2
Tooth width b (mm)180 mm
Tooth force, standard (kN)313 kN
Tooth force, maximum (kN)626 kN
Basic static axial load rating C0a (kN)66,899 kN
Basic dynamic axial load rating Ca (kN)5,648 kN
Bearing typeROD 32 DJ internal gear
