PRIUS BEARINGS · SLEWING RING BEARING

191.40.2800.990.41.1502
slewing ring bearing

Review the dimensional reference and engineering data for this slewing ring bearing model. Send your application, load and mounting requirements to receive a quotation.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review

DIMENSIONAL REFERENCE

MODEL 191.40.2800.990.41.1502

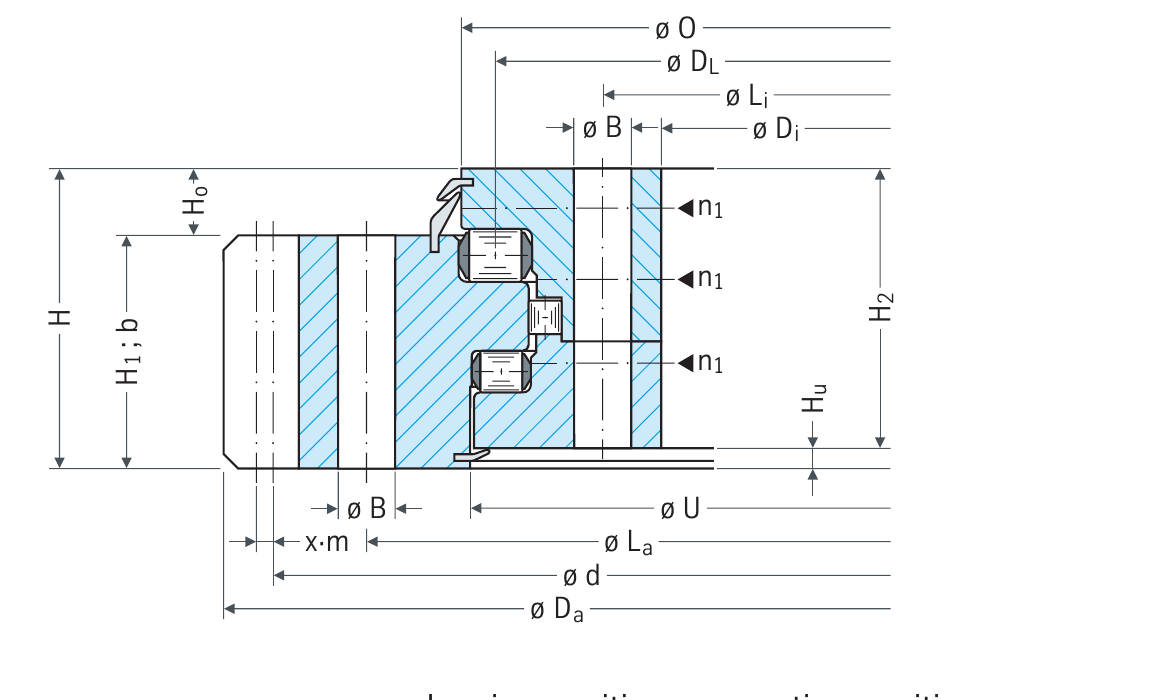

PRIUS BEARINGS 191.40.2800.990.41.1502 2D section drawing

Use the drawing together with the engineering data table when checking fit, mounting and replacement requirements.

ENGINEERING DATA

191.40.2800.990.41.1502
parameters

Key dimensions and load information for preliminary selection.

Model191.40.2800.990.41.1502
Brand / alternativePRIUS BEARINGS · Alternative for Rothe Erde
TypeSlewing ring bearing
Raceway diameter (mm)2800 mm
Outside diameter Da (mm)3136.0 mm
Inside diameter di (mm)2562 mm
Ring height H (mm)220 mm
Outer reference ØO (mm)2850 mm
Inner reference ØU (mm)2837 mm
Outer ring height H1 (mm)170 mm
Inner ring height H2 (mm)210 mm
Housing Height10 mm
Cover Height50 mm
Outer mounting length La (mm)2965 mm
Inner mounting length Li (mm)2640 mm
Mounting hole count48
Bolt diameter (mm)39 mm
Bolt size36
Hole pitch diameter d (mm)3080 mm
Gear module20
Gear tooth count154
Tooth correction10.0 mm
Tooth width b (mm)2.0 mm
Weight (kg)169 kg
