PRIUS BEARINGS · SLEWING RING BEARING

VSA 25 0855 N
slewing ring bearing

Review the dimensional reference and engineering data for this slewing ring bearing model. Send your application, load and mounting requirements to receive a quotation.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review
PRIUS BEARINGS VSA 25 0855 N external gear slewing ring bearingEXTERNAL GEAR / VSA 25 0855 N

DIMENSIONAL REFERENCE

MODEL VSA 25 0855 N

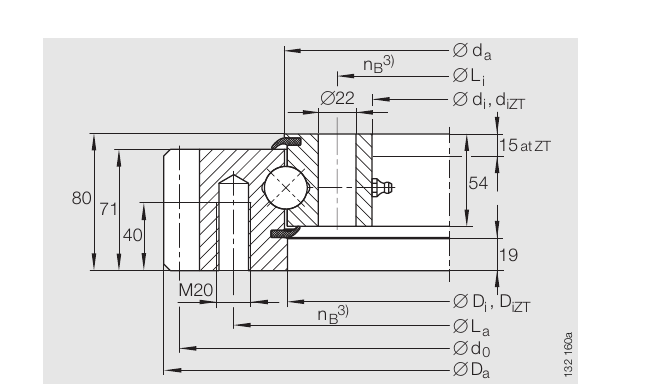

PRIUS BEARINGS VSA 25 0855 N 2D section drawing

Use the drawing together with the engineering data table when checking fit, mounting and replacement requirements.

ENGINEERING DATA

VSA 25 0855 N
parameters

Key dimensions and load information for preliminary selection.

ModelVSA 25 0855 N
Brand / alternativePRIUS BEARINGS · Alternative for Schaeffler
TypeSlewing ring bearing
Outside diameter Da (mm)997
Inside diameter di (mm)755
Ring height H (mm)80
Load rating referenceSee the Schaeffler static/dynamic load curves for the corresponding model
Outer hole pitch circle La (mm)916
Outer mounting hole count28
Inner hole pitch circle Li (mm)795
Inner mounting hole count28
Permissible friction-locking load Fr perm (kN)49.6
Basic dynamic axial load rating Ca (kN)153
Basic static axial load rating C0a (kN)345
Basic dynamic radial load rating Cr (kN)101
Basic static radial load rating C0r (kN)156
Confirm dimensions & request a quote →

NEED A MATCH?

Send us your
drawing or load case.

We can review the mounting envelope, load requirements and delivery target for a PRIUS BEARINGS slewing ring alternative.

Start an enquiry →

MODEL SELECTION

Related slewing
ring bearings

Compare nearby model references or send us your current bearing number for a dimensional cross-check.

Schaeffler · Slewing ring bearingVLA 20 0414 NView dimensions and engineering data →Schaeffler · Slewing ring bearingVLA 20 0544 NView dimensions and engineering data →Schaeffler · Slewing ring bearingVLA 20 0644 NView dimensions and engineering data →Schaeffler · Slewing ring bearingVLA 20 0744 NView dimensions and engineering data →

FREQUENT QUESTIONS

Can PRIUS BEARINGS supply this slewing ring bearing model?

We review the model, dimensions, load case, mounting arrangement and quantity before confirming a quotation.

What information is needed for selection?

Please provide the bearing model, outside and inside dimensions, height, gear configuration, mounting-hole details, loads and operating speed.

Can you check an alternative from a drawing or sample?

Yes. Upload a drawing, catalogue page or clear photos and our team can check the fit before quotation.
