Slewing Rings/PRIUS BEARINGS/RKS.061.20.0644← View all models

PRIUS BEARINGS · SLEWING RING BEARING

RKS.061.20.0644
slewing ring bearing

Review the dimensional reference and engineering data for this slewing ring bearing model. Send your application, load and mounting requirements to receive a quotation.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review
PRIUS BEARINGS RKS.061.20.0644 external gear slewing ring bearingEXTERNAL GEAR / RKS.061.20.0644

DIMENSIONAL REFERENCE

MODEL RKS.061.20.0644

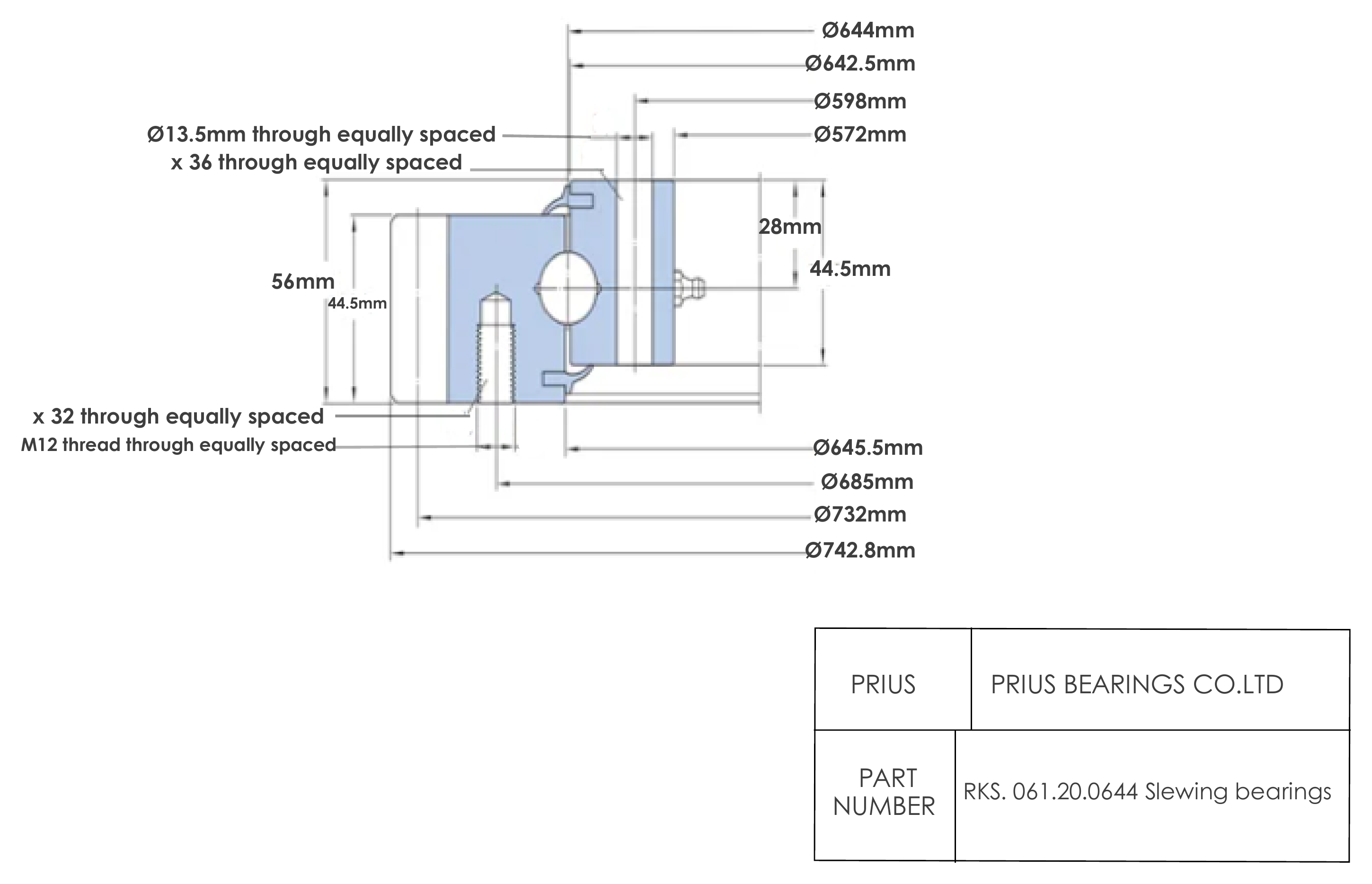

PRIUS BEARINGS RKS.061.20.0644 2D dimensional drawing

Use the drawing together with the engineering data table when checking fit, mounting and replacement requirements.

ENGINEERING DATA

RKS.061.20.0644
parameters

Key dimensions and load information for preliminary selection.

ModelRKS.061.20.0644
Brand / alternativePRIUS BEARINGS · Alternative for SKF
TypeSlewing ring bearing
Outside diameter Da (mm)742.8
Inside diameter di (mm)572
Ring height H (mm)56
Mounting hole count36
Bolt diameter (mm)13.5
Inner ring reference Ji (mm)598
Inner ring hole diameter Ki (mm)13.5
Inner ring hole count Ni36
Outer ring reference Je (mm)690
Outer ring hole diameter Ke (mm)12
Outer ring hole count Ne32
Drawing FileRKS.061.20.0644 slewing bearings.pdf.pdf
Confirm dimensions & request a quote →

NEED A MATCH?

Send us your
drawing or load case.

We can review the mounting envelope, load requirements and delivery target for a PRIUS BEARINGS slewing ring alternative.

Start an enquiry →

MODEL SELECTION

Related slewing
ring bearings

Compare nearby model references or send us your current bearing number for a dimensional cross-check.

SKF · Slewing ring bearingRKS.061.20.0414View dimensions and engineering data →SKF · Slewing ring bearingRKS.061.20.0544View dimensions and engineering data →SKF · Slewing ring bearingRKS.061.20.0744View dimensions and engineering data →SKF · Slewing ring bearingRKS.061.20.0844View dimensions and engineering data →

FREQUENT QUESTIONS

Can PRIUS BEARINGS supply this slewing ring bearing model?

We review the model, dimensions, load case, mounting arrangement and quantity before confirming a quotation.

What information is needed for selection?

Please provide the bearing model, outside and inside dimensions, height, gear configuration, mounting-hole details, loads and operating speed.

Can you check an alternative from a drawing or sample?

Yes. Upload a drawing, catalogue page or clear photos and our team can check the fit before quotation.
