PRIUS BEARINGS · SLEWING RING BEARING

RKS.222600101001
slewing ring bearing

Review the dimensional reference and engineering data for this slewing ring bearing model. Send your application, load and mounting requirements to receive a quotation.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review
PRIUS BEARINGS RKS.222600101001 external gear slewing ring bearingEXTERNAL GEAR / RKS.222600101001

DIMENSIONAL REFERENCE

MODEL RKS.222600101001

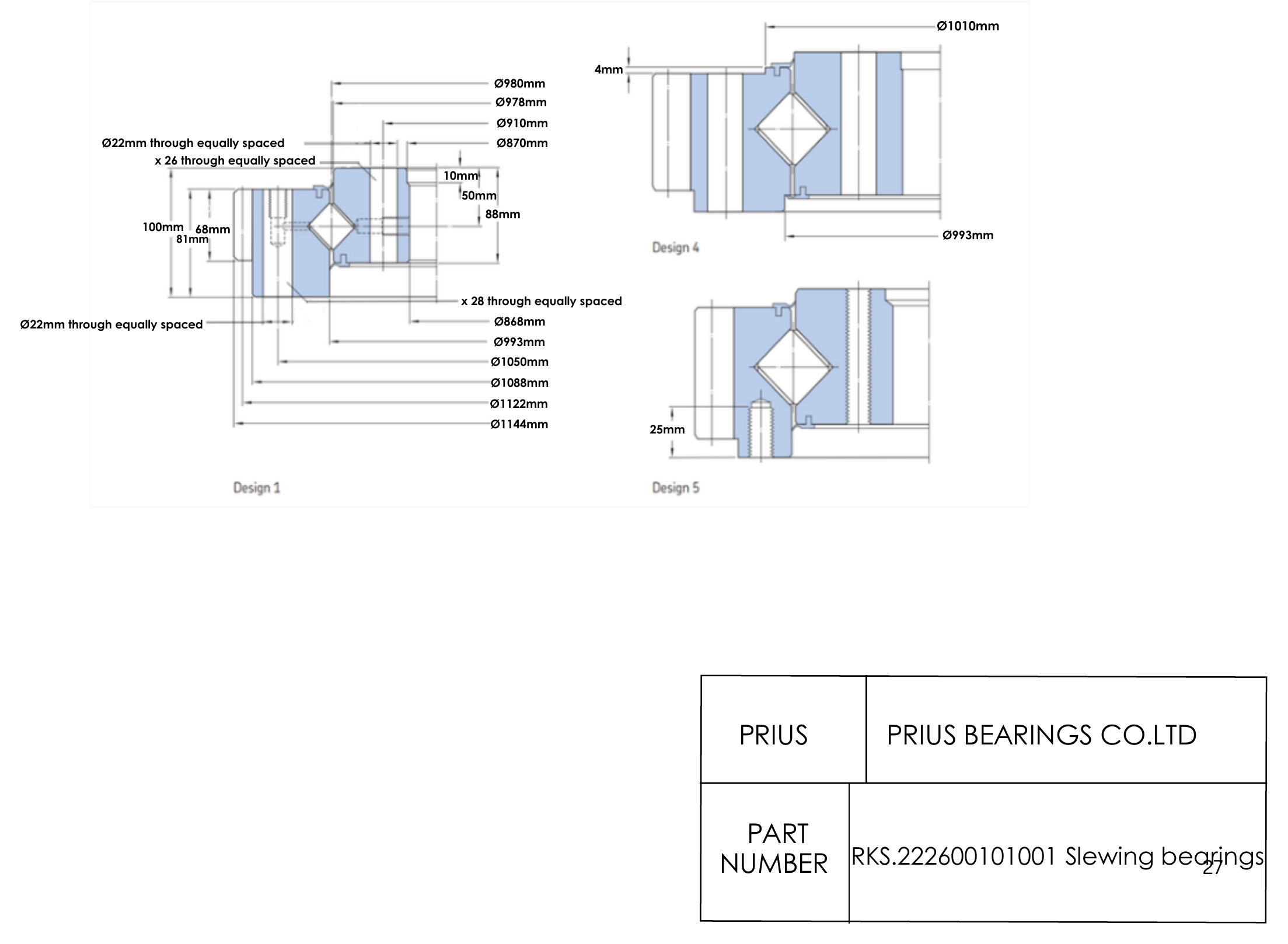

PRIUS BEARINGS RKS.222600101001 2D dimensional drawing

Use the drawing together with the engineering data table when checking fit, mounting and replacement requirements.

ENGINEERING DATA

RKS.222600101001
parameters

Key dimensions and load information for preliminary selection.

ModelRKS.222600101001
Brand / alternativePRIUS BEARINGS · Alternative for SKF
TypeSlewing ring bearing
Outside diameter Da (mm)1144
Inside diameter di (mm)868
Ring height H (mm)100
Mounting hole count26
Bolt diameter (mm)22
Drawing FileRKS.222600101001 slewing bearings.pdf.pdf
Shoulder height H1 (mm)50
Outer reference D1 (mm)1088
Inner reference D2 (mm)993
Raceway reference D3 (mm)1010
Outer raceway offset C (mm)81
Inner raceway offset C1 (mm)68
Inner reference d1 (mm)978
Inner reference d2 (mm)870
Ring section width B (mm)88
Ring section width B1 (mm)10
Confirm dimensions & request a quote →
