PRIUS BEARINGS · SLEWING RING BEARING

RKS.425060201001
slewing ring bearing

Review the dimensional reference and engineering data for this slewing ring bearing model. Send your application, load and mounting requirements to receive a quotation.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review
PRIUS BEARINGS RKS.425060201001 external gear slewing ring bearingEXTERNAL GEAR / RKS.425060201001

DIMENSIONAL REFERENCE

MODEL RKS.425060201001

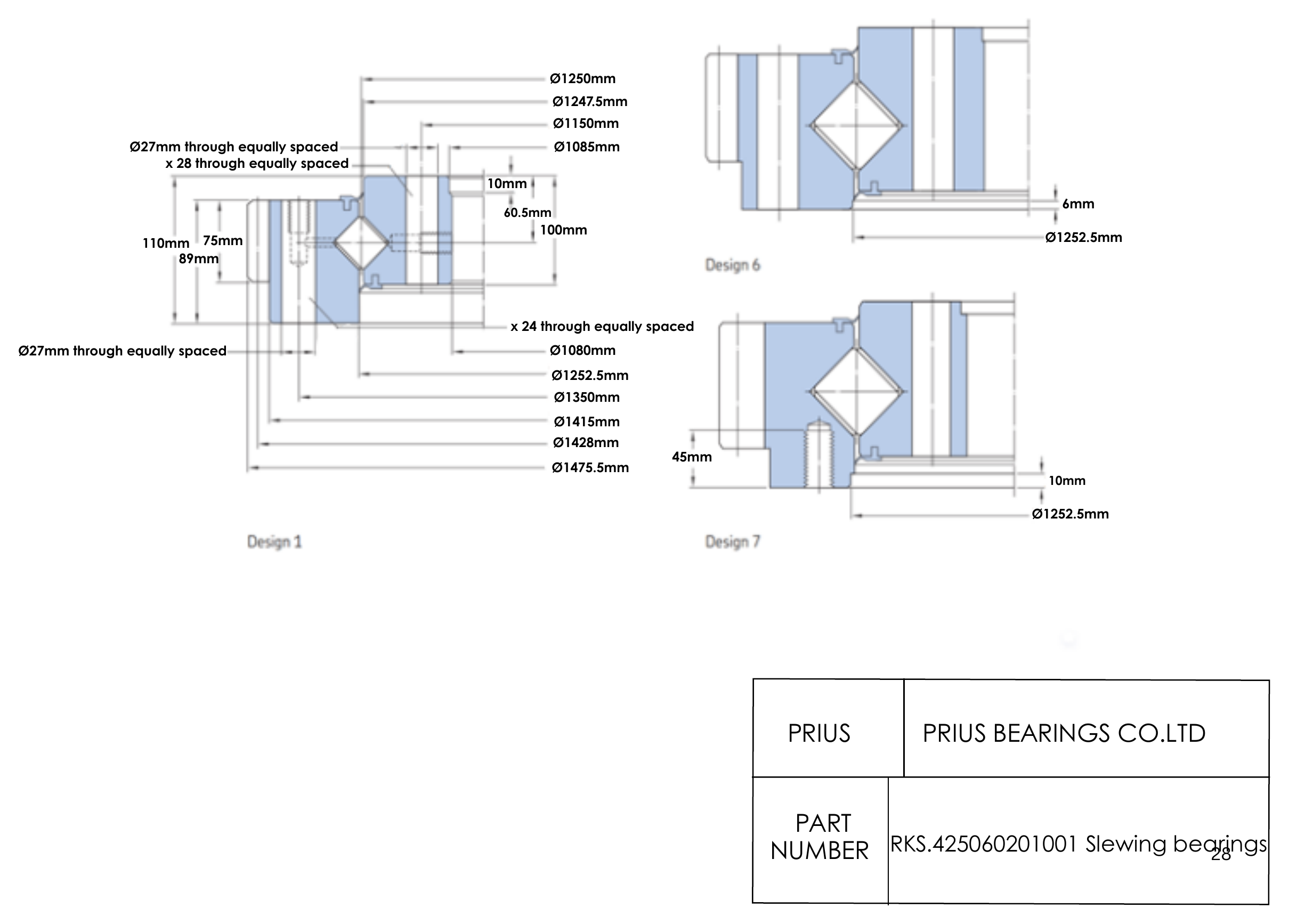

PRIUS BEARINGS RKS.425060201001 2D dimensional drawing

Use the drawing together with the engineering data table when checking fit, mounting and replacement requirements.

ENGINEERING DATA

RKS.425060201001
parameters

Key dimensions and load information for preliminary selection.

ModelRKS.425060201001
Brand / alternativePRIUS BEARINGS · Alternative for SKF
TypeSlewing ring bearing
Outside diameter Da (mm)1475.5
Inside diameter di (mm)1080
Ring height H (mm)110
Mounting hole count28
Bolt diameter (mm)27
Drawing FileRKS.425060201001 slewing bearings.pdf.pdf
Shoulder height H1 (mm)60.5
Outer reference D1 (mm)1415
Inner reference D2 (mm)1252.5
Outer raceway offset C (mm)89
Inner raceway offset C1 (mm)75
Inner reference d1 (mm)1247.5
Inner reference d2 (mm)1085
Ring section width B (mm)100
Ring section width B1 (mm)10
Confirm dimensions & request a quote →
