Thin Section Bearings/8 mm Series/J11008CP0

8 mm Series · Type C · Sealed · Radial contact

J11008CP0
thin section bearing

Metric thin section bearing from the Reali-Slim selection tables.

Request a quote →Back to all models
PRIUS BEARINGS J11008CP0 sealed thin section bearingSEALED / J11008CP0

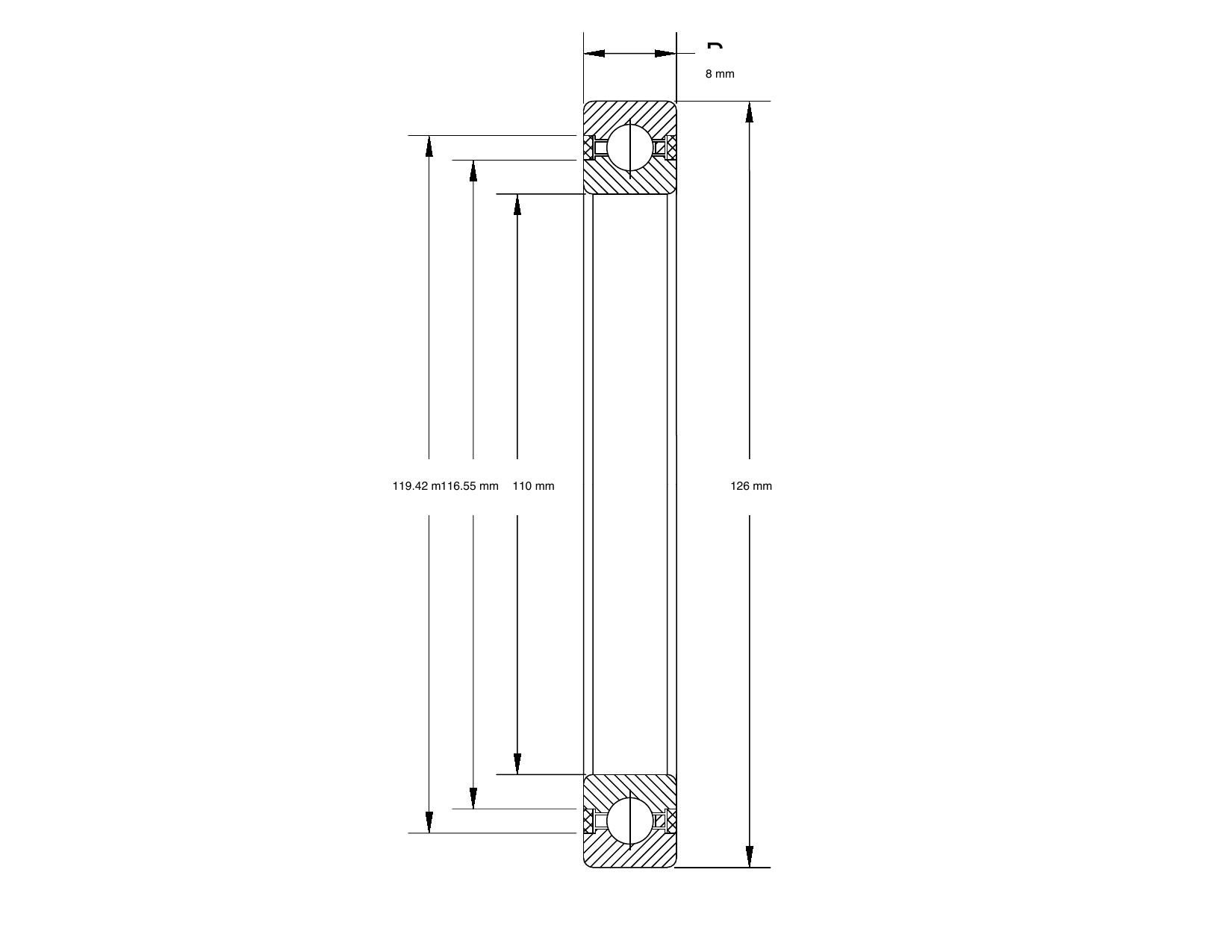

PRIUS BEARINGSMECHANICAL DRAWING · J11008CP0UNITS: mm · SCALE: NTS
PRIUS BEARINGS J11008CP0 dimensioned mechanical drawing
PART NUMBERJ11008CP0
BORE / d110 mm
O.D. / D126 mm
WIDTH / B8 mm
L1 / L2 / L3116.55 mm / 119.42 mm / —
TYPEType C · Sealed · Radial contact
DYNAMIC RADIAL LOAD5237
STATIC RADIAL LOAD11395
DYNAMIC THRUST LOADN/A
STATIC THRUST LOADN/A
WEIGHT0.15 kg

TECHNICAL DATA

Specification
at a glance.

Bore110 mm
Outside diameter126 mm
Radial section8 mm
L1 land diameter116.55 mm
L2 land diameter119.42 mm
L3 counterbore—
Dynamic radial capacity5237
Dynamic thrust capacityN/A
Static radial capacity11395
Static thrust capacityN/A
MaterialAISI 52100 steel
SeparatorType A circular pocket
PrecisionKaydon Precision Class 1 / ABEC-1F or better
Temperature range-54°C to +121°C
Weight0.15 kg
