Thin Section Bearings/13 mm Series/K02520XP0

13 mm Series · Type X · Open · Four-point contact

K02520XP0
thin section bearing

Metric thin section bearing from the Reali-Slim selection tables.

Request a quote →Back to all models
PRIUS BEARINGS K02520XP0 open thin section bearingOPEN / K02520XP0

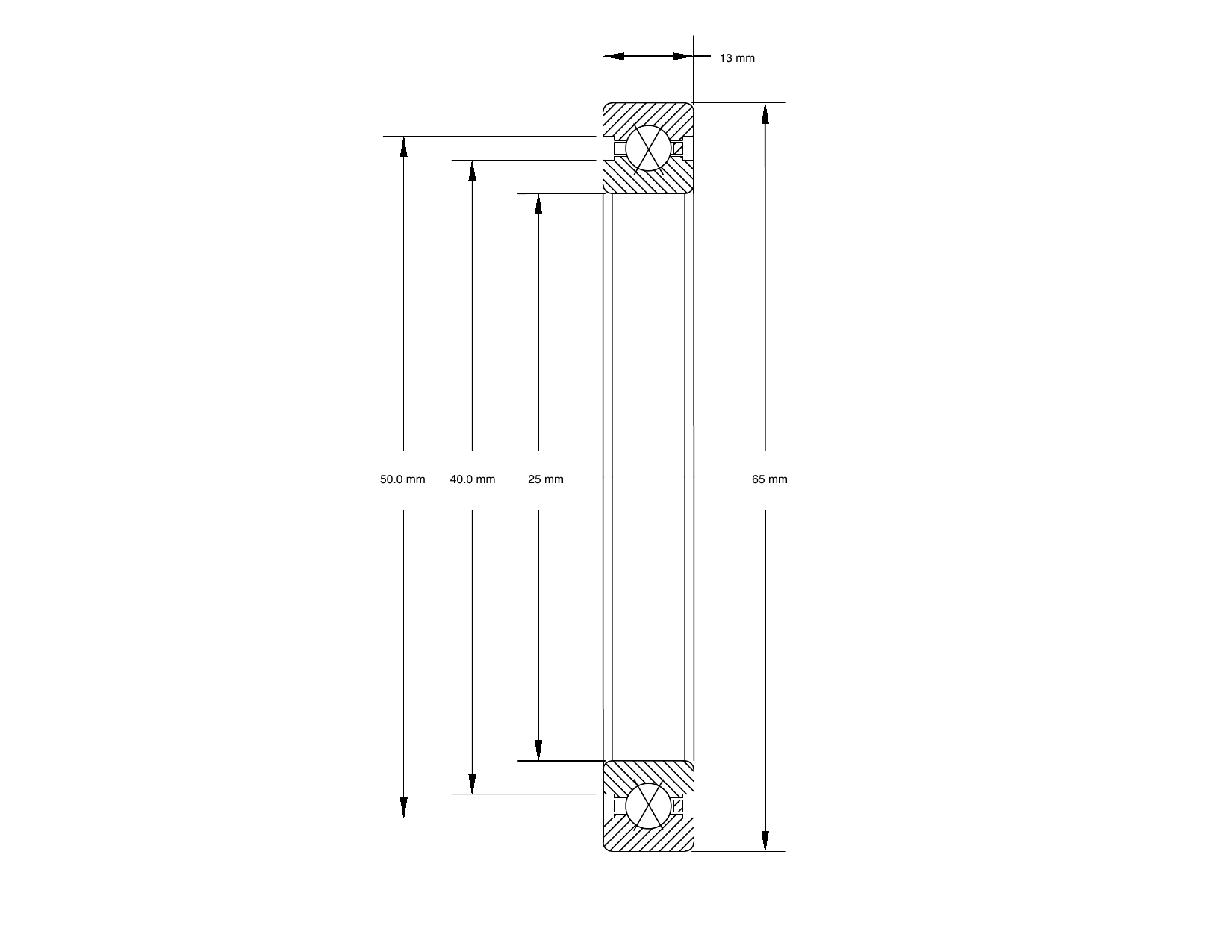

PRIUS BEARINGSMECHANICAL DRAWING · K02520XP0UNITS: mm · SCALE: NTS
PRIUS BEARINGS K02520XP0 dimensioned mechanical drawing
PART NUMBERK02520XP0
BORE / d25 mm
O.D. / D65 mm
WIDTH / B13 mm
L1 / L2 / L340.0 mm / 50.0 mm / —
TYPEType X · Open · Four-point contact
DYNAMIC RADIAL LOAD14739
STATIC RADIAL LOAD24958
DYNAMIC THRUST LOAD17544
STATIC THRUST LOAD225
WEIGHT0.34 kg

TECHNICAL DATA

Specification
at a glance.

Bore25 mm
Outside diameter65 mm
Radial section13 mm
L1 land diameter40.0 mm
L2 land diameter50.0 mm
L3 counterbore—
Dynamic radial capacity14739
Dynamic thrust capacity17544
Static radial capacity24958
Static thrust capacity225
MaterialAISI 52100 steel
SeparatorType A circular pocket
PrecisionKaydon Precision Class 1 / ABEC-1F or better
Temperature range-54°C to +121°C
Weight0.34 kg
