Thin Section Bearings/13 mm Series/K06013XP0

13 mm Series · Type X · Open · Four-point contact

K06013XP0
thin section bearing

Metric thin section bearing from the Reali-Slim selection tables.

Request a quote →Back to all models
PRIUS BEARINGS K06013XP0 open thin section bearingOPEN / K06013XP0

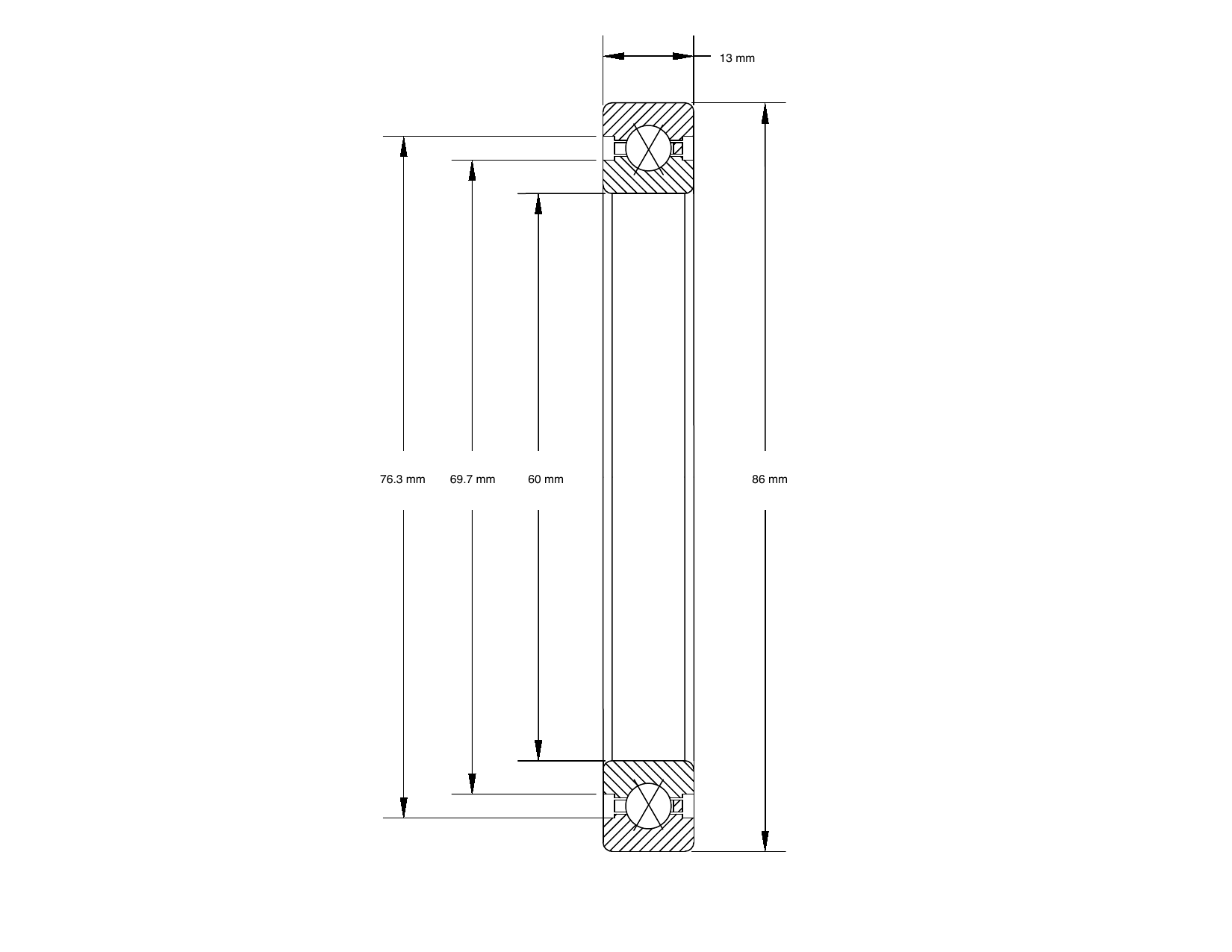

PRIUS BEARINGSMECHANICAL DRAWING · K06013XP0UNITS: mm · SCALE: NTS
PRIUS BEARINGS K06013XP0 dimensioned mechanical drawing
PART NUMBERK06013XP0
BORE / d60 mm
O.D. / D86 mm
WIDTH / B13 mm
L1 / L2 / L369.7 mm / 76.3 mm / —
TYPEType X · Open · Four-point contact
DYNAMIC RADIAL LOAD9944
STATIC RADIAL LOAD26939
DYNAMIC THRUST LOAD14082
STATIC THRUST LOAD393
WEIGHT0.23 kg

TECHNICAL DATA

Specification
at a glance.

Bore60 mm
Outside diameter86 mm
Radial section13 mm
L1 land diameter69.7 mm
L2 land diameter76.3 mm
L3 counterbore—
Dynamic radial capacity9944
Dynamic thrust capacity14082
Static radial capacity26939
Static thrust capacity393
MaterialAISI 52100 steel
SeparatorType A circular pocket
PrecisionKaydon Precision Class 1 / ABEC-1F or better
Temperature range-54°C to +121°C
Weight0.23 kg
