Thin Section Bearings/8 mm Series/K07008CP0

8 mm Series · Type C · Sealed · Radial contact

K07008CP0
thin section bearing

Metric thin section bearing from the Reali-Slim selection tables.

Request a quote →Back to all models
PRIUS BEARINGS K07008CP0 sealed thin section bearingSEALED / K07008CP0

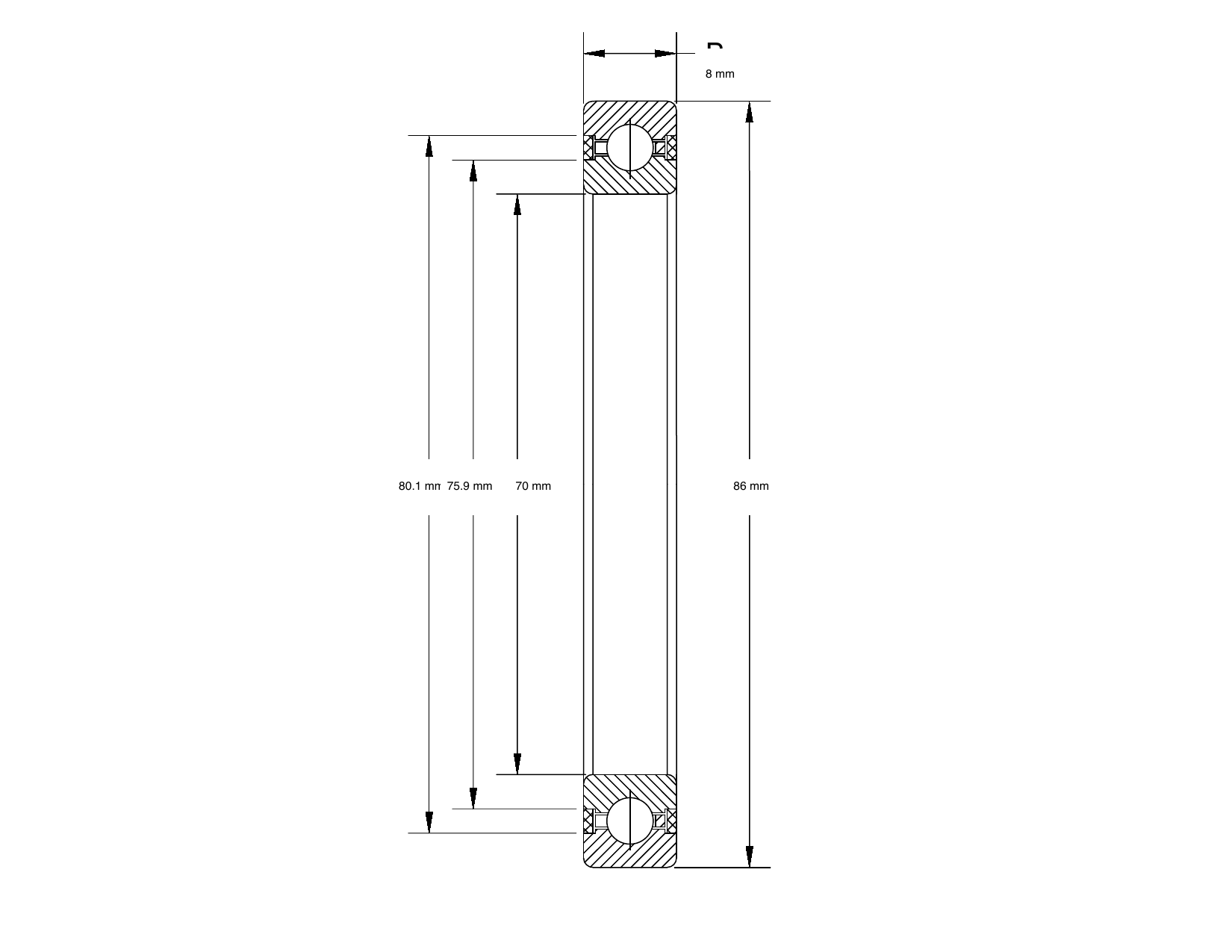

PRIUS BEARINGSMECHANICAL DRAWING · K07008CP0UNITS: mm · SCALE: NTS
PRIUS BEARINGS K07008CP0 dimensioned mechanical drawing
PART NUMBERK07008CP0
BORE / d70 mm
O.D. / D86 mm
WIDTH / B8 mm
L1 / L2 / L375.9 mm / 80.1 mm / —
TYPEType C · Sealed · Radial contact
DYNAMIC RADIAL LOAD4089
STATIC RADIAL LOAD7433
DYNAMIC THRUST LOADN/A
STATIC THRUST LOADN/A
WEIGHT0.10 kg

TECHNICAL DATA

Specification
at a glance.

Bore70 mm
Outside diameter86 mm
Radial section8 mm
L1 land diameter75.9 mm
L2 land diameter80.1 mm
L3 counterbore—
Dynamic radial capacity4089
Dynamic thrust capacityN/A
Static radial capacity7433
Static thrust capacityN/A
MaterialAISI 52100 steel
SeparatorType A circular pocket
PrecisionKaydon Precision Class 1 / ABEC-1F or better
Temperature range-54°C to +121°C
Weight0.10 kg
