Thin Section Bearings/13 mm Series/K16013XP0

13 mm Series · Type X · Open · Four-point contact

K16013XP0
thin section bearing

Metric thin section bearing from the Reali-Slim selection tables.

Request a quote →Back to all models
PRIUS BEARINGS K16013XP0 open thin section bearingOPEN / K16013XP0

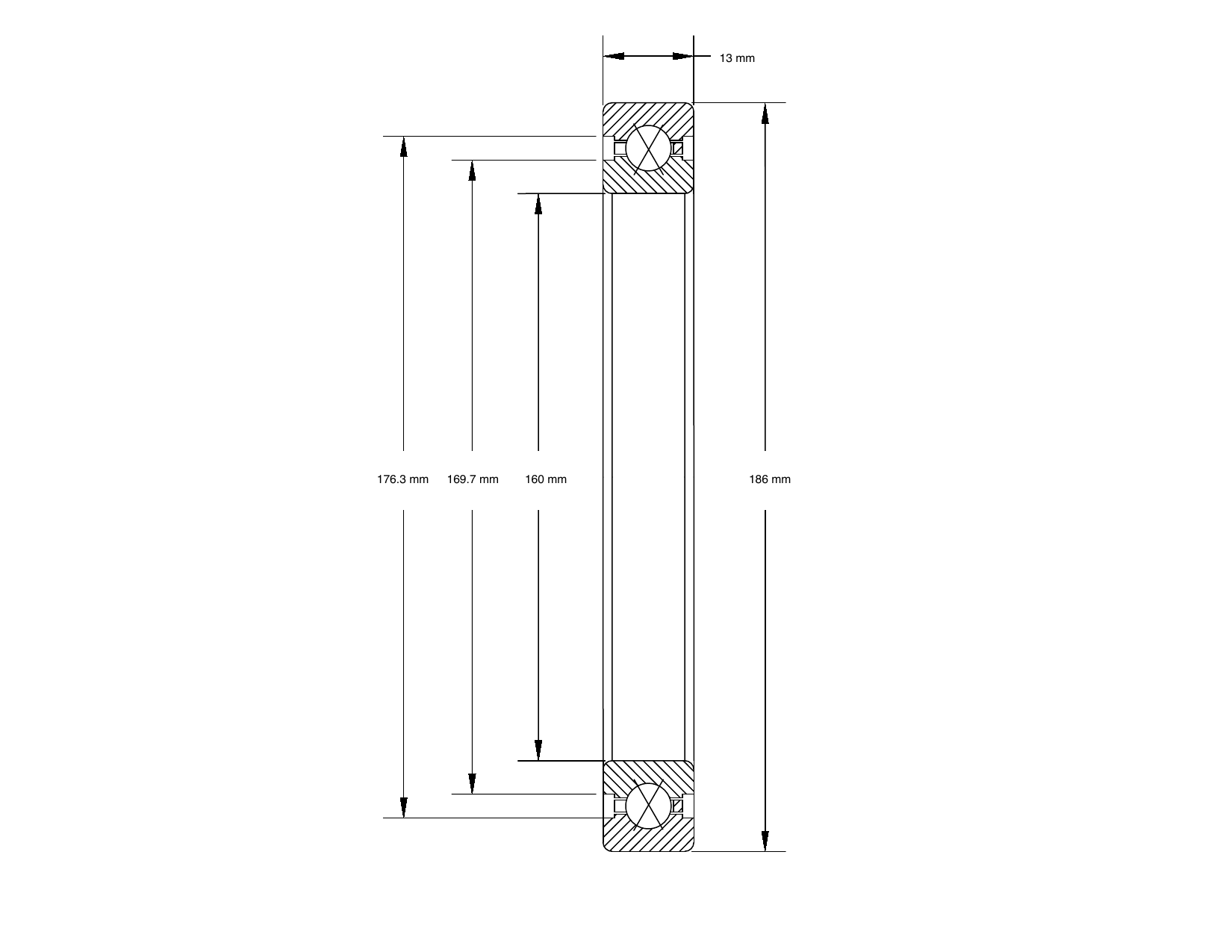

PRIUS BEARINGSMECHANICAL DRAWING · K16013XP0UNITS: mm · SCALE: NTS
PRIUS BEARINGS K16013XP0 dimensioned mechanical drawing
PART NUMBERK16013XP0
BORE / d160 mm
O.D. / D186 mm
WIDTH / B13 mm
L1 / L2 / L3169.7 mm / 176.3 mm / —
TYPEType X · Open · Four-point contact
DYNAMIC RADIAL LOAD16073
STATIC RADIAL LOAD63390
DYNAMIC THRUST LOAD24919
STATIC THRUST LOAD2193
WEIGHT0.51 kg

TECHNICAL DATA

Specification
at a glance.

Bore160 mm
Outside diameter186 mm
Radial section13 mm
L1 land diameter169.7 mm
L2 land diameter176.3 mm
L3 counterbore—
Dynamic radial capacity16073
Dynamic thrust capacity24919
Static radial capacity63390
Static thrust capacity2193
MaterialAISI 52100 steel
SeparatorType A circular pocket
PrecisionKaydon Precision Class 1 / ABEC-1F or better
Temperature range-54°C to +121°C
Weight0.51 kg
