8 mm Series · Type C · Sealed · Radial contact
K17008CP0
thin section bearing
Metric thin section bearing from the Reali-Slim selection tables.

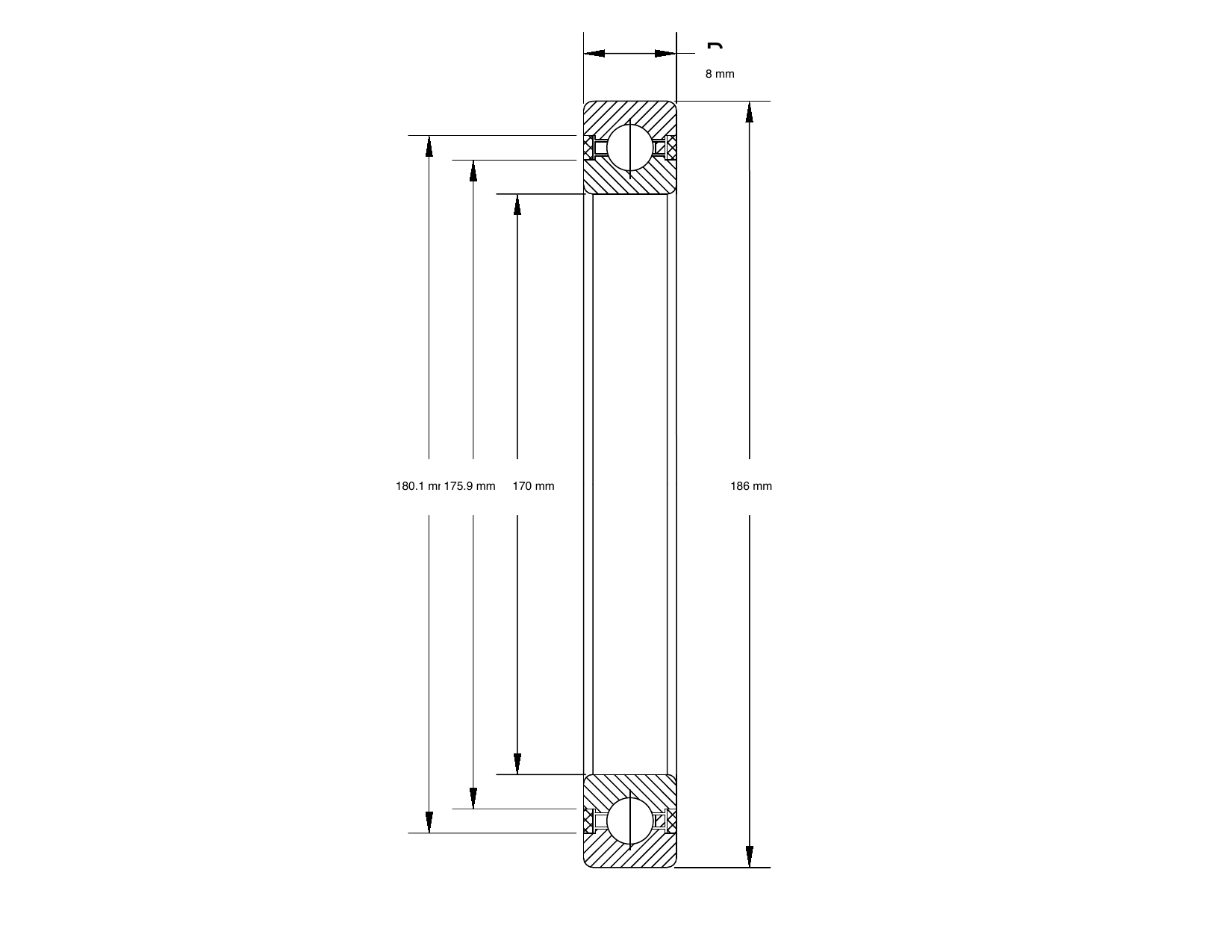

SEALED / K17008CP0PRIUS BEARINGSMECHANICAL DRAWING · K17008CP0UNITS: mm · SCALE: NTS
PART NUMBERK17008CP0
BORE / d170 mm
O.D. / D186 mm
WIDTH / B8 mm
L1 / L2 / L3175.9 mm / 180.1 mm / —
TYPEType C · Sealed · Radial contact
DYNAMIC RADIAL LOAD6727
STATIC RADIAL LOAD17328
DYNAMIC THRUST LOADN/A
STATIC THRUST LOADN/A
WEIGHT0.20 kg
TECHNICAL DATA
Specification
at a glance.
Bore170 mm
Outside diameter186 mm
Radial section8 mm
L1 land diameter175.9 mm
L2 land diameter180.1 mm
L3 counterbore—
Dynamic radial capacity6727
Dynamic thrust capacityN/A
Static radial capacity17328
Static thrust capacityN/A
MaterialAISI 52100 steel
SeparatorType A circular pocket
PrecisionKaydon Precision Class 1 / ABEC-1F or better
Temperature range-54°C to +121°C
Weight0.20 kg
