Thin Section Bearings/13 mm Series/K20013XP0

13 mm Series · Type X · Open · Four-point contact

K20013XP0
thin section bearing

Metric thin section bearing from the Reali-Slim selection tables.

Request a quote →Back to all models
PRIUS BEARINGS K20013XP0 open thin section bearingOPEN / K20013XP0

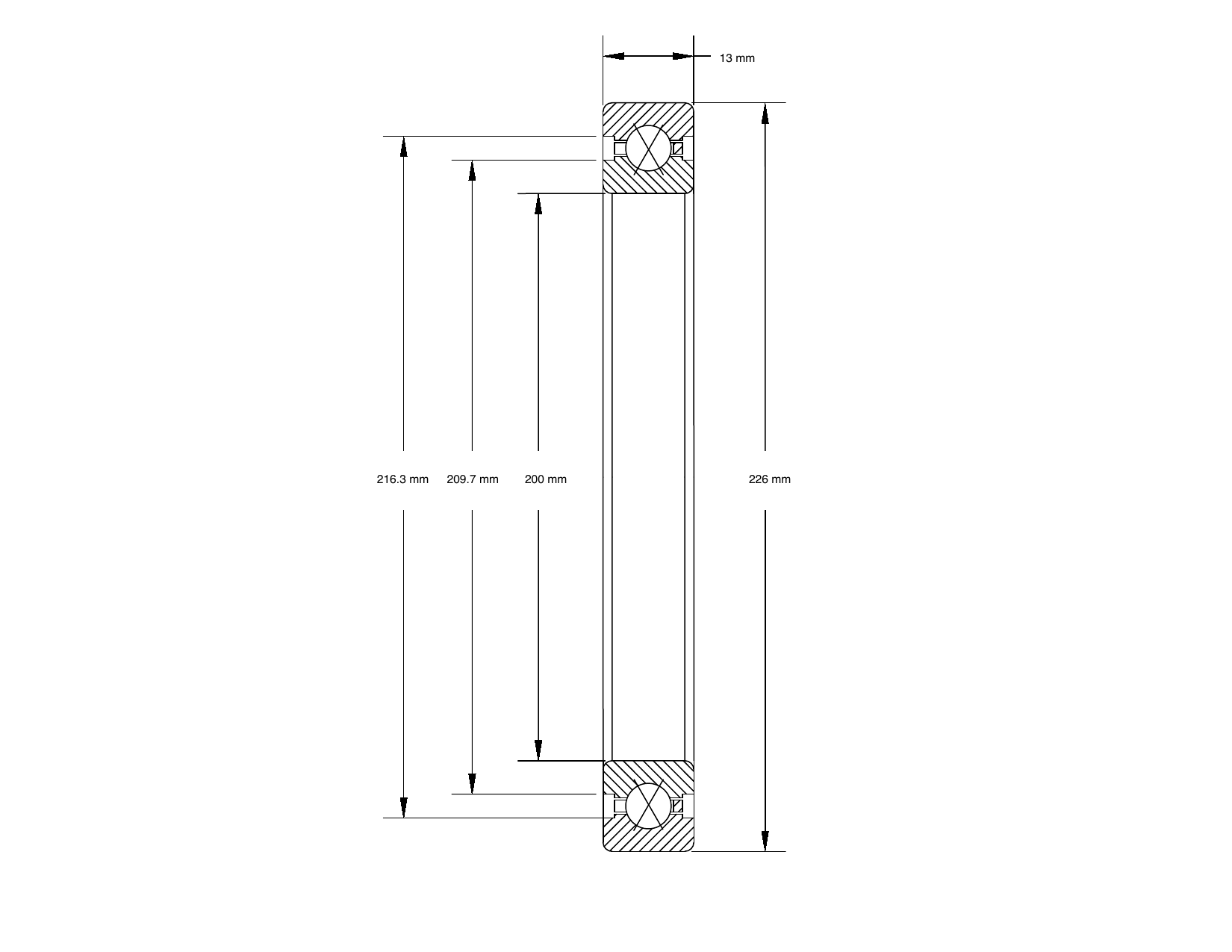

PRIUS BEARINGSMECHANICAL DRAWING · K20013XP0UNITS: mm · SCALE: NTS
PRIUS BEARINGS K20013XP0 dimensioned mechanical drawing
PART NUMBERK20013XP0
BORE / d200 mm
O.D. / D226 mm
WIDTH / B13 mm
L1 / L2 / L3209.7 mm / 216.3 mm / —
TYPEType X · Open · Four-point contact
DYNAMIC RADIAL LOAD18319
STATIC RADIAL LOAD79238
DYNAMIC THRUST LOAD28910
STATIC THRUST LOAD3375
WEIGHT0.63 kg

TECHNICAL DATA

Specification
at a glance.

Bore200 mm
Outside diameter226 mm
Radial section13 mm
L1 land diameter209.7 mm
L2 land diameter216.3 mm
L3 counterbore—
Dynamic radial capacity18319
Dynamic thrust capacity28910
Static radial capacity79238
Static thrust capacity3375
MaterialAISI 52100 steel
SeparatorType A circular pocket
PrecisionKaydon Precision Class 1 / ABEC-1F or better
Temperature range-54°C to +121°C
Weight0.63 kg
