Thin Section Bearings/8 mm Series/K25008XP0

8 mm Series · Type X · Sealed · Four-point contact

K25008XP0
thin section bearing

Metric thin section bearing from the Reali-Slim selection tables.

Request a quote →Back to all models

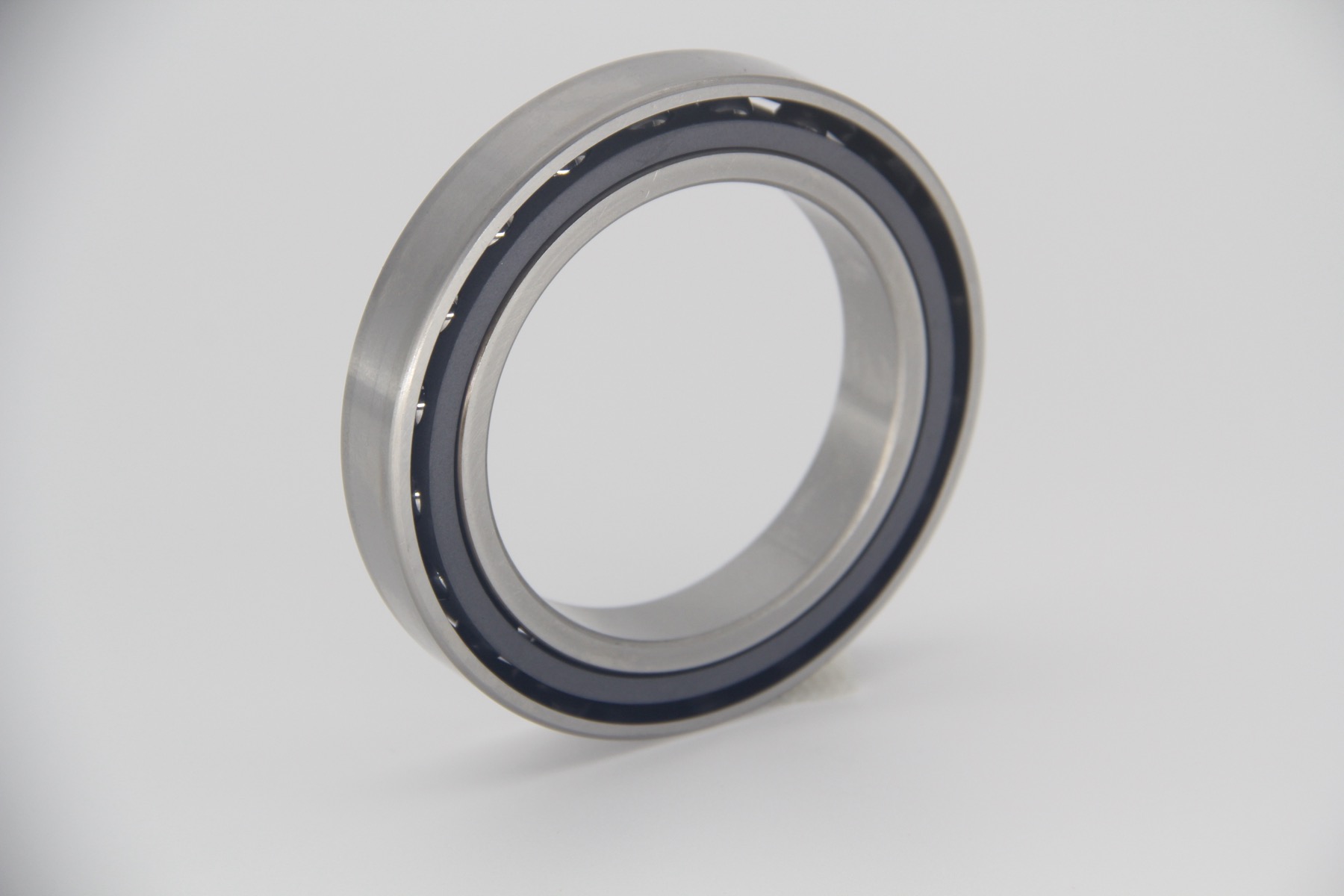

PRIUS BEARINGS K25008XP0 sealed thin section bearingSEALED / K25008XP0
PRIUS BEARINGSMECHANICAL DRAWING · K25008XP0UNITS: mm · SCALE: NTS
PRIUS BEARINGS K25008XP0 dimensioned mechanical drawing
PART NUMBERK25008XP0
BORE / d250 mm
O.D. / D266 mm
WIDTH / B8 mm
L1 / L2 / L3255.9 mm / 260.1 mm / —
TYPEType X · Sealed · Four-point contact
DYNAMIC RADIAL LOAD11111
STATIC RADIAL LOAD62517
DYNAMIC THRUST LOAD18044
STATIC THRUST LOAD3226
WEIGHT0.28 kg

TECHNICAL DATA

Specification
at a glance.

Bore250 mm
Outside diameter266 mm
Radial section8 mm
L1 land diameter255.9 mm
L2 land diameter260.1 mm
L3 counterbore—
Dynamic radial capacity11111
Dynamic thrust capacity18044
Static radial capacity62517
Static thrust capacity3226
MaterialAISI 52100 steel
SeparatorType A circular pocket
PrecisionKaydon Precision Class 1 / ABEC-1F or better
Temperature range-54°C to +121°C
Weight0.28 kg
