13 mm Series · Type C · Open · Radial contact
K25020CP0
thin section bearing
Metric thin section bearing from the Reali-Slim selection tables.

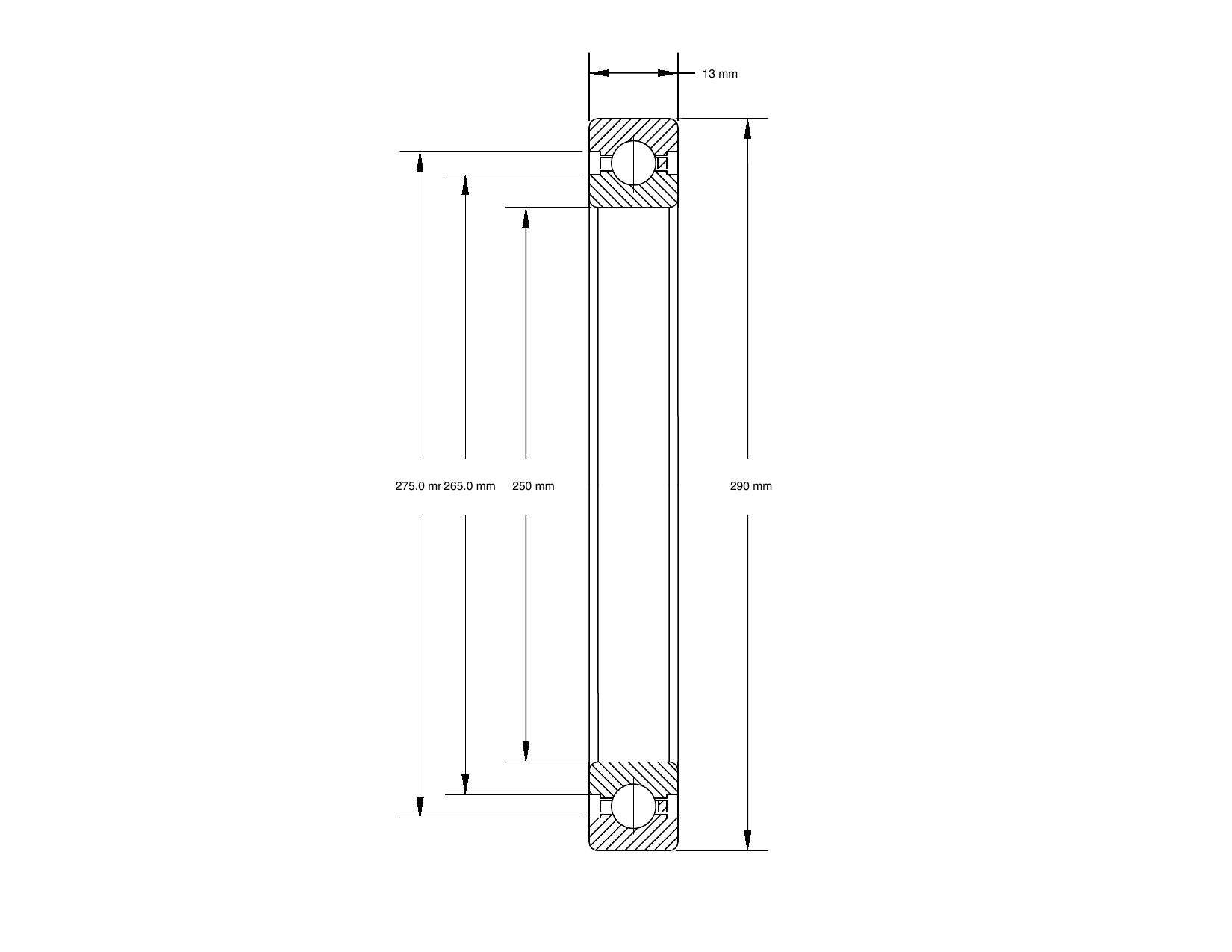

OPEN / K25020CP0PRIUS BEARINGSMECHANICAL DRAWING · K25020CP0UNITS: mm · SCALE: NTS
PART NUMBERK25020CP0
BORE / d250 mm
O.D. / D290 mm
WIDTH / B13 mm
L1 / L2 / L3265.0 mm / 275.0 mm / —
TYPEType C · Open · Radial contact
DYNAMIC RADIAL LOAD27665
STATIC RADIAL LOAD59899
DYNAMIC THRUST LOADN/A
STATIC THRUST LOADN/A
WEIGHT0.10 kg
TECHNICAL DATA
Specification
at a glance.
Bore250 mm
Outside diameter290 mm
Radial section13 mm
L1 land diameter265.0 mm
L2 land diameter275.0 mm
L3 counterbore—
Dynamic radial capacity27665
Dynamic thrust capacityN/A
Static radial capacity59899
Static thrust capacityN/A
MaterialAISI 52100 steel
SeparatorType A circular pocket
PrecisionKaydon Precision Class 1 / ABEC-1F or better
Temperature range-54°C to +121°C
Weight0.10 kg
INDEPENDENT ALTERNATIVE MANUFACTURER
Need a direct replacement
for K25020CP0?
Share your drawing, duty cycle or existing part number. We will review fit, load and availability before quoting.
Talk to an engineer →Brand names and part numbers are used for identification and cross-reference only. PRIUS BEARINGS is not affiliated with the original trademark owner.
