Thin Section Bearings/KB Series/KB065AR0

KB Series · Type A · Open · Angular contact

KB065AR0
thin section bearing

Open angular contact thin section bearing for precision motion and compact assemblies.

Request a quote →Back to all models
PRIUS BEARINGS KB065AR0 open thin section bearingOPEN / KB065AR0

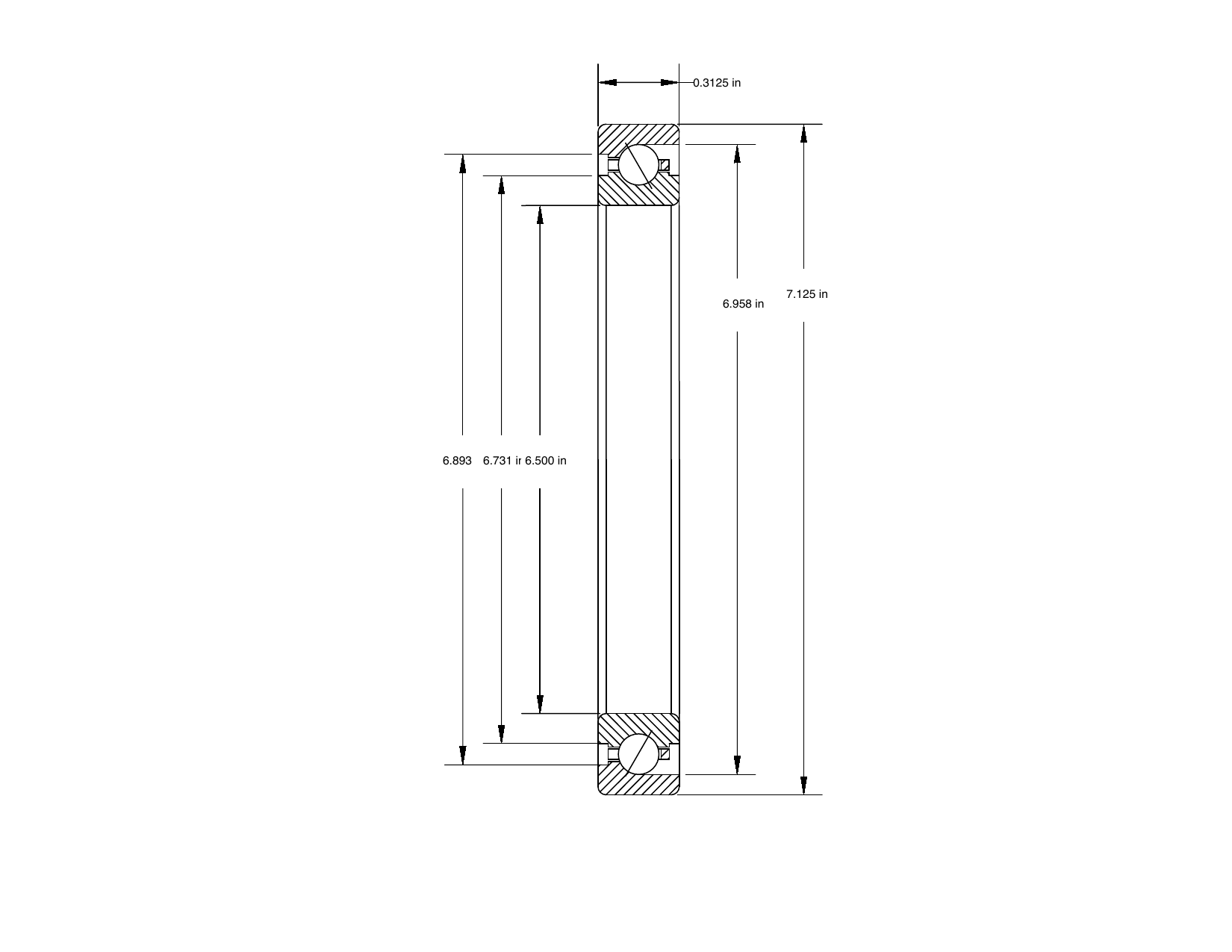

PRIUS BEARINGSMECHANICAL DRAWING · KB065AR0UNITS: inch · SCALE: NTS
PRIUS BEARINGS KB065AR0 dimensioned mechanical drawing
PART NUMBERKB065AR0
BORE / d6.500 in
O.D. / D7.125 in
WIDTH / B0.3125 in
L1 / L2 / L36.731 in / 6.893 in / 6.958 in
TYPEType A · Open · Angular contact
DYNAMIC RADIAL LOAD1,132
STATIC RADIAL LOAD3,200
DYNAMIC THRUST LOAD2,840
STATIC THRUST LOAD9,240
WEIGHT0.47 lb

TECHNICAL DATA

Specification
at a glance.

Bore6.500 in
Outside diameter7.125 in
Radial section0.3125 in
L1 land diameter6.731 in
L2 land diameter6.893 in
L3 counterbore6.958 in
Dynamic radial capacity1,132
Dynamic thrust capacity2,840
Static radial capacity3,200
Static thrust capacity9,240
MaterialAISI 52100 steel
SeparatorType A circular pocket
PrecisionKaydon Precision Class 1 / ABEC-1F or better
Temperature range-54°C to +121°C
Weight0.47 lb
