KC Series · Type A · Open · Angular contact
KC140AR0
thin section bearing
Open angular contact thin section bearing for precision motion and compact assemblies.

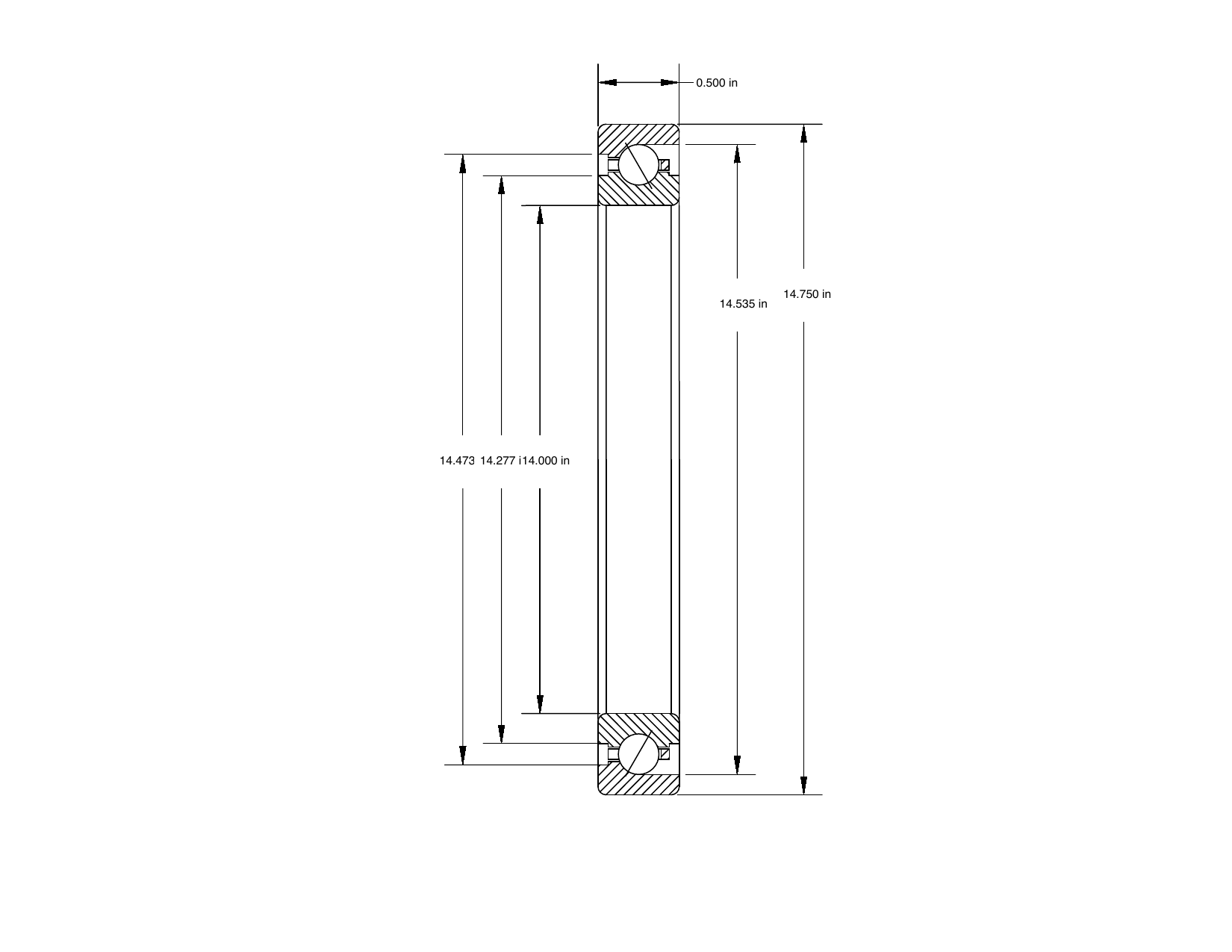

OPEN / KC140AR0PRIUS BEARINGSMECHANICAL DRAWING · KC140AR0UNITS: inch · SCALE: NTS
PART NUMBERKC140AR0
BORE / d14.000 in
O.D. / D14.750 in
WIDTH / B0.500 in
L1 / L2 / L314.277 in / 14.473 in / 14.535 in
TYPEType A · Open · Angular contact
DYNAMIC RADIAL LOAD2,347
STATIC RADIAL LOAD8,490
DYNAMIC THRUST LOAD6,170
STATIC THRUST LOAD24,500
WEIGHT0.1 lb
TECHNICAL DATA
Specification
at a glance.
Bore14.000 in
Outside diameter14.750 in
Radial section0.500 in
L1 land diameter14.277 in
L2 land diameter14.473 in
L3 counterbore14.535 in
Dynamic radial capacity2,347
Dynamic thrust capacity6,170
Static radial capacity8,490
Static thrust capacity24,500
MaterialAISI 52100 steel
SeparatorType A circular pocket
PrecisionKaydon Precision Class 1 / ABEC-1F or better
Temperature range-54°C to +121°C
Weight0.1 lb
INDEPENDENT ALTERNATIVE MANUFACTURER
Need a direct replacement
for KC140AR0?
Share your drawing, duty cycle or existing part number. We will review fit, load and availability before quoting.
