Thin Section Bearings/KD Series/KD090AR0

KD Series · Type A · Open · Angular contact

KD090AR0
thin section bearing

Open angular contact thin section bearing for precision motion and compact assemblies.

Request a quote →Back to all models
PRIUS BEARINGS KD090AR0 open thin section bearingOPEN / KD090AR0

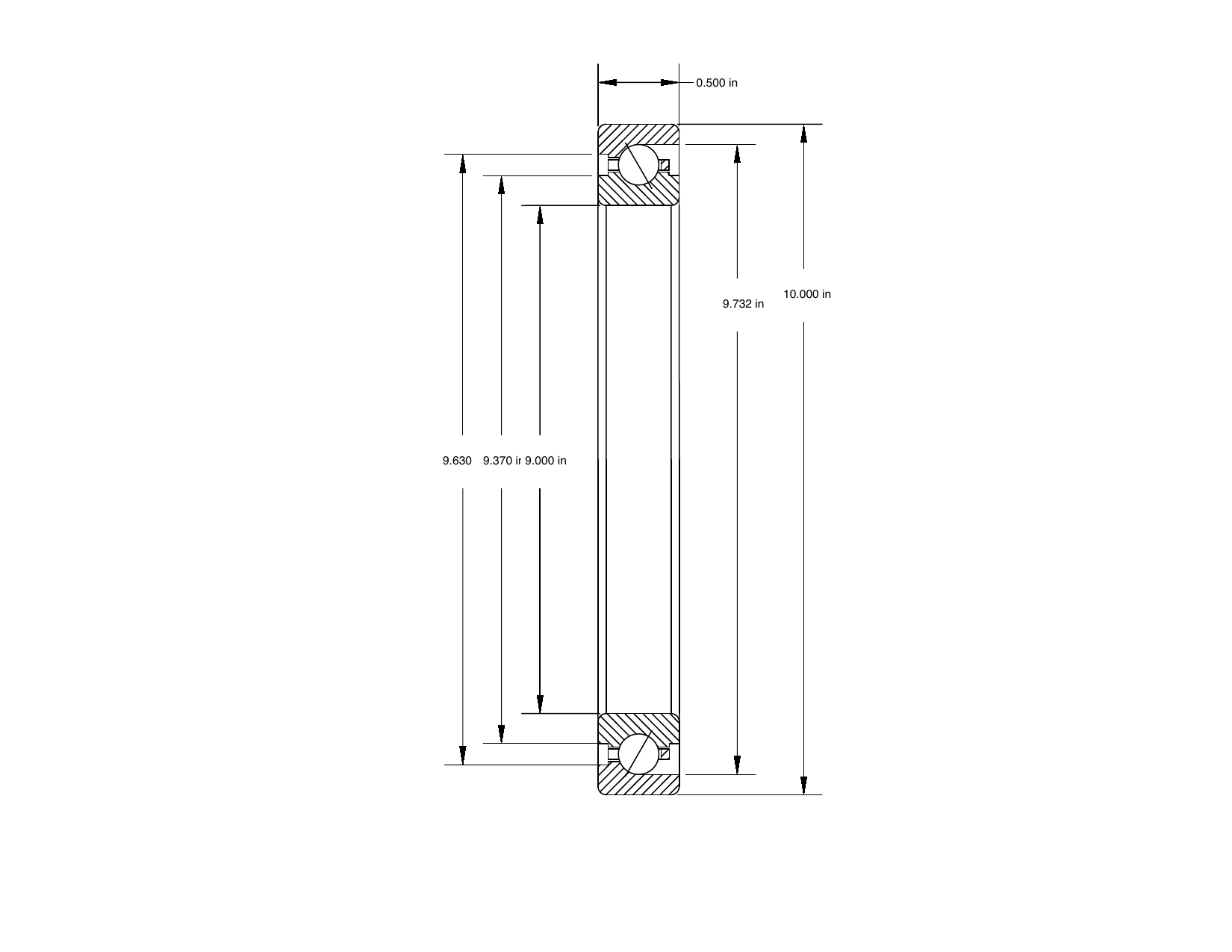

PRIUS BEARINGSMECHANICAL DRAWING · KD090AR0UNITS: inch · SCALE: NTS
PRIUS BEARINGS KD090AR0 dimensioned mechanical drawing
PART NUMBERKD090AR0
BORE / d9.000 in
O.D. / D10.000 in
WIDTH / B0.500 in
L1 / L2 / L39.370 in / 9.630 in / 9.732 in
TYPEType A · Open · Angular contact
DYNAMIC RADIAL LOAD2,803
STATIC RADIAL LOAD7,500
DYNAMIC THRUST LOAD7,010
STATIC THRUST LOAD21,660
WEIGHT0.1 lb

TECHNICAL DATA

Specification
at a glance.

Bore9.000 in
Outside diameter10.000 in
Radial section0.500 in
L1 land diameter9.370 in
L2 land diameter9.630 in
L3 counterbore9.732 in
Dynamic radial capacity2,803
Dynamic thrust capacity7,010
Static radial capacity7,500
Static thrust capacity21,660
MaterialAISI 52100 steel
SeparatorType A circular pocket
PrecisionKaydon Precision Class 1 / ABEC-1F or better
Temperature range-54°C to +121°C
Weight0.1 lb
