Thin Section Bearings/KD Series/KD100AR0

KD Series · Type A · Open · Angular contact

KD100AR0
thin section bearing

Open angular contact thin section bearing for precision motion and compact assemblies.

Request a quote →Back to all models
PRIUS BEARINGS KD100AR0 open thin section bearingOPEN / KD100AR0

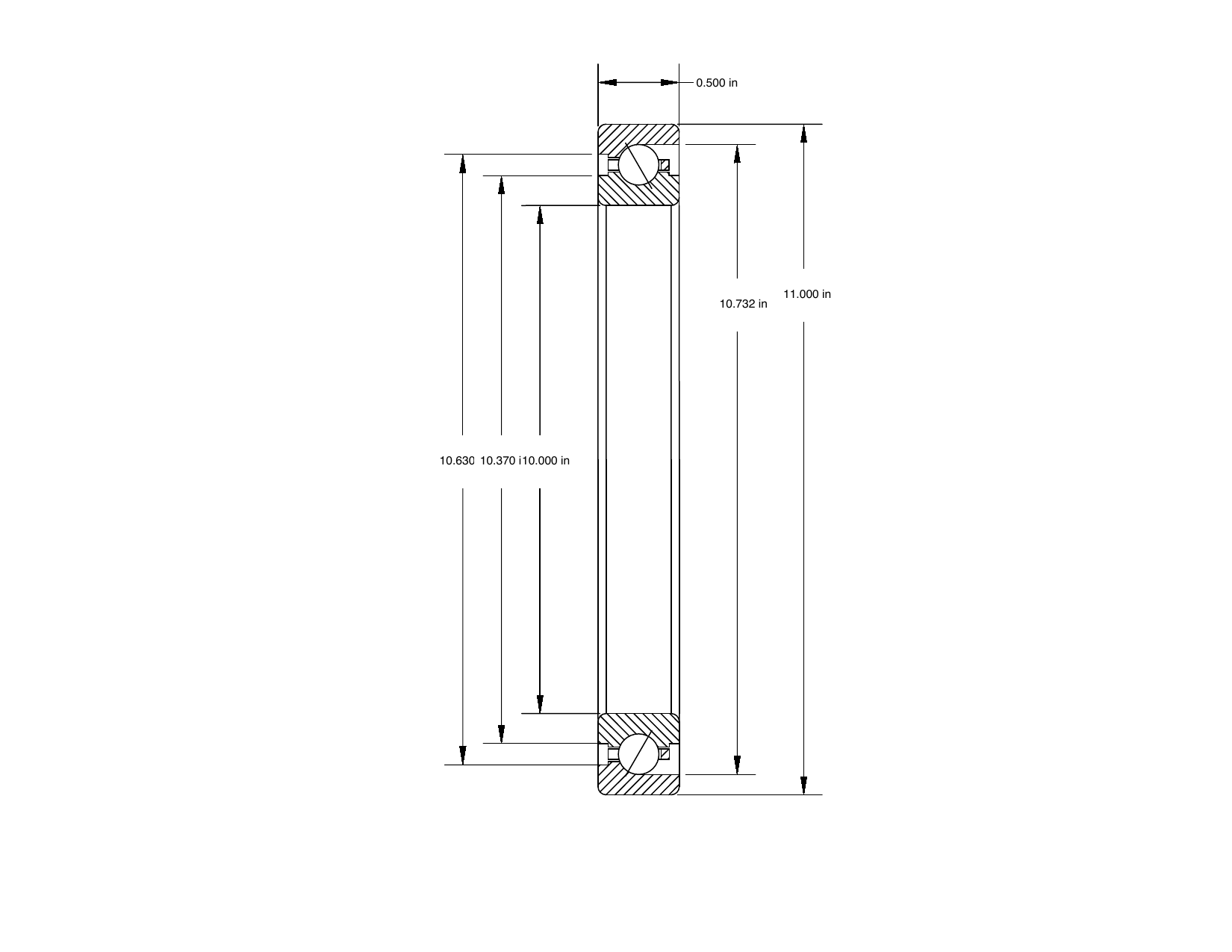

PRIUS BEARINGSMECHANICAL DRAWING · KD100AR0UNITS: inch · SCALE: NTS
PRIUS BEARINGS KD100AR0 dimensioned mechanical drawing
PART NUMBERKD100AR0
BORE / d10.000 in
O.D. / D11.000 in
WIDTH / B0.500 in
L1 / L2 / L310.370 in / 10.630 in / 10.732 in
TYPEType A · Open · Angular contact
DYNAMIC RADIAL LOAD2,972
STATIC RADIAL LOAD8,290
DYNAMIC THRUST LOAD7,500
STATIC THRUST LOAD23,940
WEIGHT0.1 lb

TECHNICAL DATA

Specification
at a glance.

Bore10.000 in
Outside diameter11.000 in
Radial section0.500 in
L1 land diameter10.370 in
L2 land diameter10.630 in
L3 counterbore10.732 in
Dynamic radial capacity2,972
Dynamic thrust capacity7,500
Static radial capacity8,290
Static thrust capacity23,940
MaterialAISI 52100 steel
SeparatorType A circular pocket
PrecisionKaydon Precision Class 1 / ABEC-1F or better
Temperature range-54°C to +121°C
Weight0.1 lb

FIND YOUR FIT

Related models.

Open full selector ↗
