Thin Section Bearings/KD Series/KD120AR0

KD Series · Type A · Open · Angular contact

KD120AR0
thin section bearing

Open angular contact thin section bearing for precision motion and compact assemblies.

Request a quote →Back to all models
PRIUS BEARINGS KD120AR0 open thin section bearingOPEN / KD120AR0

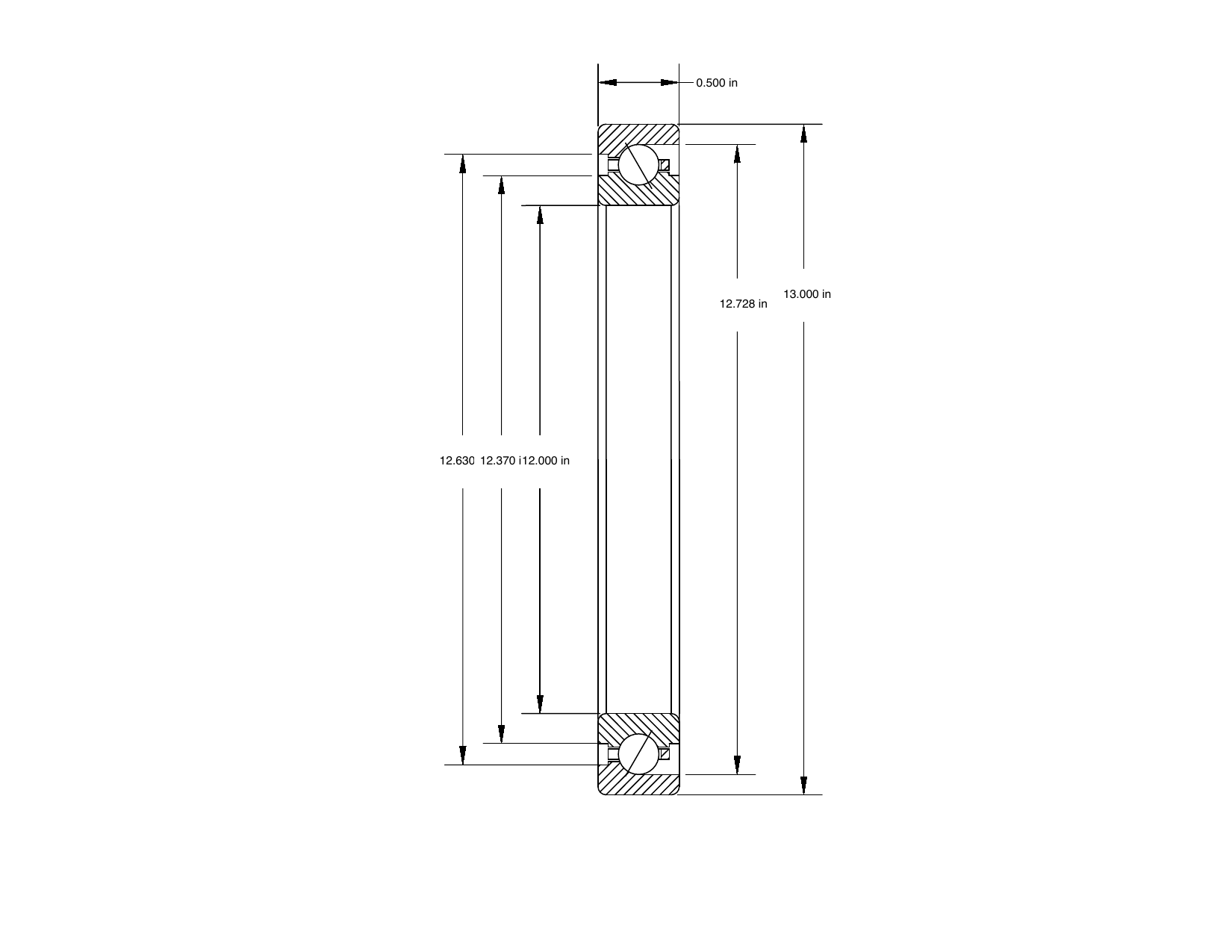

PRIUS BEARINGSMECHANICAL DRAWING · KD120AR0UNITS: inch · SCALE: NTS
PRIUS BEARINGS KD120AR0 dimensioned mechanical drawing
PART NUMBERKD120AR0
BORE / d12.000 in
O.D. / D13.000 in
WIDTH / B0.500 in
L1 / L2 / L312.370 in / 12.630 in / 12.728 in
TYPEType A · Open · Angular contact
DYNAMIC RADIAL LOAD3,288
STATIC RADIAL LOAD9,870
DYNAMIC THRUST LOAD8,420
STATIC THRUST LOAD28,500
WEIGHT0.2 lb

TECHNICAL DATA

Specification
at a glance.

Bore12.000 in
Outside diameter13.000 in
Radial section0.500 in
L1 land diameter12.370 in
L2 land diameter12.630 in
L3 counterbore12.728 in
Dynamic radial capacity3,288
Dynamic thrust capacity8,420
Static radial capacity9,870
Static thrust capacity28,500
MaterialAISI 52100 steel
SeparatorType A circular pocket
PrecisionKaydon Precision Class 1 / ABEC-1F or better
Temperature range-54°C to +121°C
Weight0.2 lb
