KG Series · Type A · Open · Angular contact
KG060AR0
thin section bearing
Open angular contact thin section bearing for precision motion and compact assemblies.

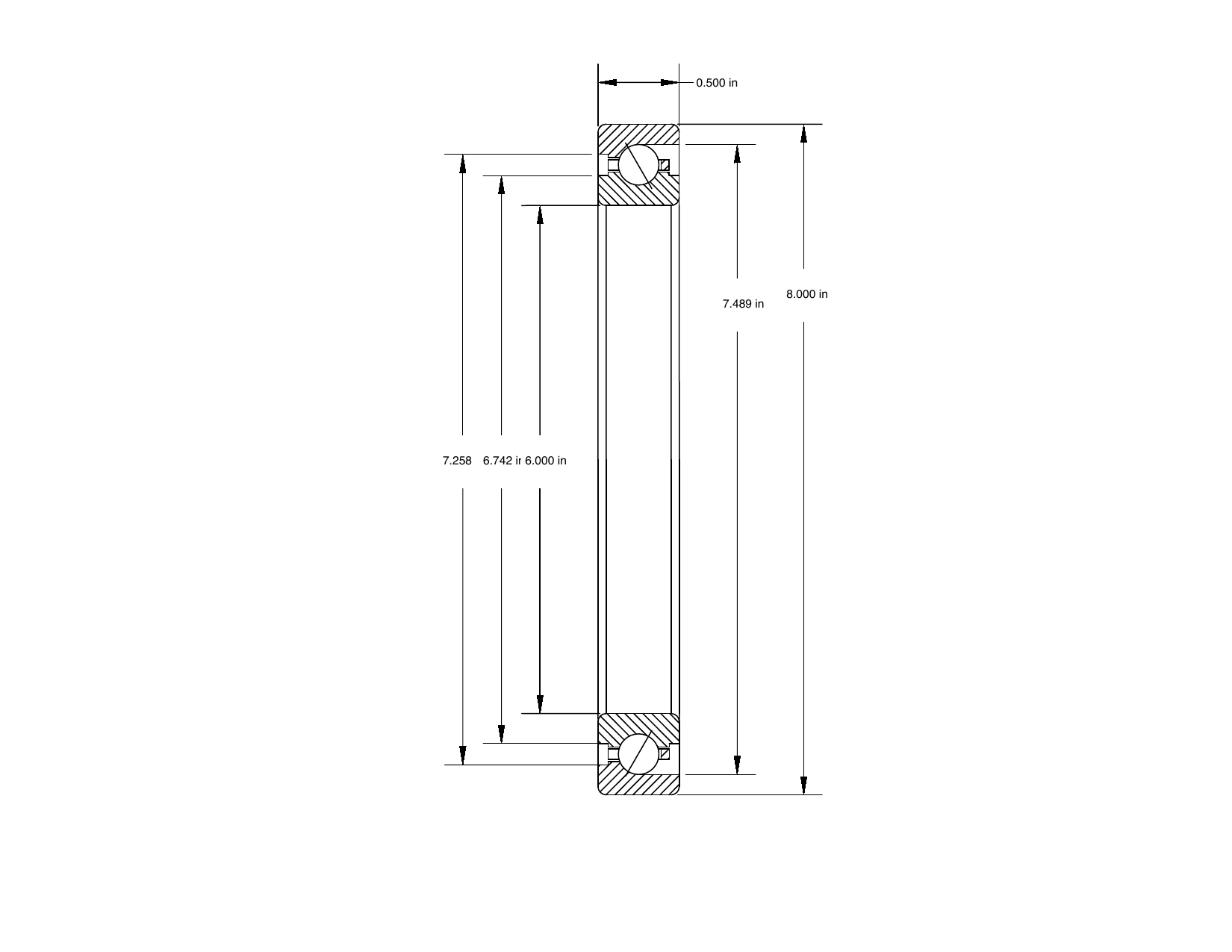

OPEN / KG060AR0PRIUS BEARINGSMECHANICAL DRAWING · KG060AR0UNITS: inch · SCALE: NTS
PART NUMBERKG060AR0
BORE / d6.000 in
O.D. / D8.000 in
WIDTH / B0.500 in
L1 / L2 / L36.742 in / 7.258 in / 7.489 in
TYPEType A · Open · Angular contact
DYNAMIC RADIAL LOAD7,480
STATIC RADIAL LOAD13,270
DYNAMIC THRUST LOAD17,060
STATIC THRUST LOAD38,300
WEIGHT0.5 lb
TECHNICAL DATA
Specification
at a glance.
Bore6.000 in
Outside diameter8.000 in
Radial section0.500 in
L1 land diameter6.742 in
L2 land diameter7.258 in
L3 counterbore7.489 in
Dynamic radial capacity7,480
Dynamic thrust capacity17,060
Static radial capacity13,270
Static thrust capacity38,300
MaterialAISI 52100 steel
SeparatorType A circular pocket
PrecisionKaydon Precision Class 1 / ABEC-1F or better
Temperature range-54°C to +121°C
Weight0.5 lb
INDEPENDENT ALTERNATIVE MANUFACTURER
Need a direct replacement
for KG060AR0?
Share your drawing, duty cycle or existing part number. We will review fit, load and availability before quoting.
