Slewing Rings/PRIUS BEARINGS/RKS.21 0741← View all models

PRIUS BEARINGS · SLEWING RING BEARING

RKS.21 0741
slewing ring bearing

Review the dimensional reference and engineering data for this slewing ring bearing model. Send your application, load and mounting requirements to receive a quotation.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review
PRIUS BEARINGS RKS.21 0741 external gear slewing ring bearingEXTERNAL GEAR / RKS.21 0741

DIMENSIONAL REFERENCE

MODEL RKS.21 0741

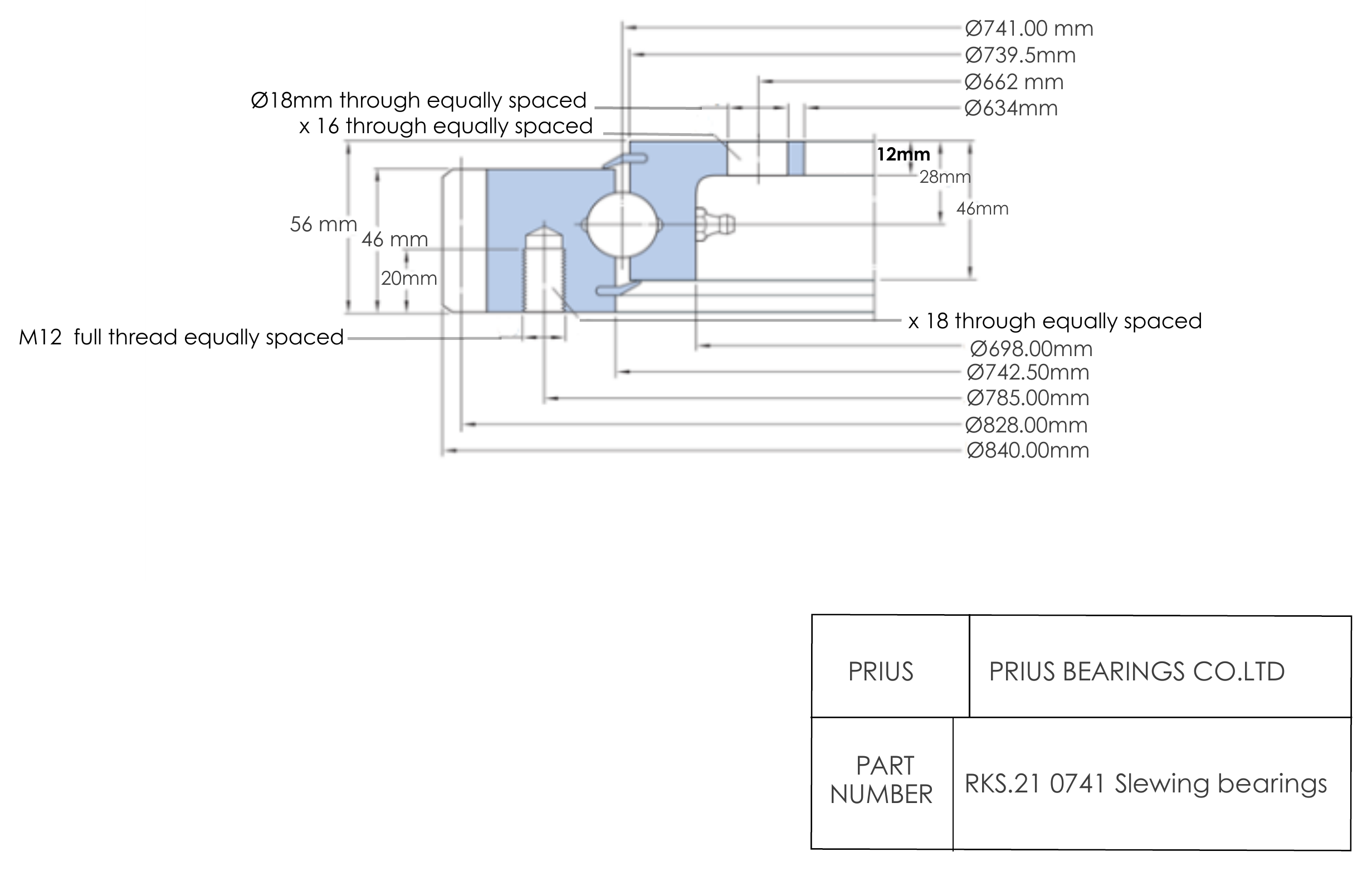

PRIUS BEARINGS RKS.21 0741 2D dimensional drawing

Use the drawing together with the engineering data table when checking fit, mounting and replacement requirements.

ENGINEERING DATA

RKS.21 0741
parameters

Key dimensions and load information for preliminary selection.

ModelRKS.21 0741
Brand / alternativePRIUS BEARINGS · Alternative for SKF
TypeSlewing ring bearing
Outside diameter Da (mm)840
Inside diameter di (mm)634
Ring height H (mm)56
Mounting hole count16
Bolt diameter (mm)18
Drawing FileRKS.21 0741 slewing bearings.pdf.pdf
Outer ring reference Je (mm)785
Outer ring hole diameter Ke (mm)12
Outer ring hole count Ne18
Inner ring reference Ji (mm)662
Inner ring hole diameter Ki (mm)18
Inner ring hole count Ni16
Confirm dimensions & request a quote →

NEED A MATCH?

Send us your
drawing or load case.

We can review the mounting envelope, load requirements and delivery target for a PRIUS BEARINGS slewing ring alternative.

Start an enquiry →

MODEL SELECTION

Related slewing
ring bearings

Compare nearby model references or send us your current bearing number for a dimensional cross-check.

SKF · Slewing ring bearingRKS.061.20.0414View dimensions and engineering data →SKF · Slewing ring bearingRKS.061.20.0544View dimensions and engineering data →SKF · Slewing ring bearingRKS.061.20.0644View dimensions and engineering data →SKF · Slewing ring bearingRKS.061.20.0744View dimensions and engineering data →

FREQUENT QUESTIONS

Can PRIUS BEARINGS supply this slewing ring bearing model?

We review the model, dimensions, load case, mounting arrangement and quantity before confirming a quotation.

What information is needed for selection?

Please provide the bearing model, outside and inside dimensions, height, gear configuration, mounting-hole details, loads and operating speed.

Can you check an alternative from a drawing or sample?

Yes. Upload a drawing, catalogue page or clear photos and our team can check the fit before quotation.
