Thin Section Bearings/13 mm Series/K10013XP0

13 mm Series · Type X · Open · Four-point contact

K10013XP0
thin section bearing

Metric thin section bearing from the Reali-Slim selection tables.

Request a quote →Back to all models
PRIUS BEARINGS K10013XP0 open thin section bearingOPEN / K10013XP0

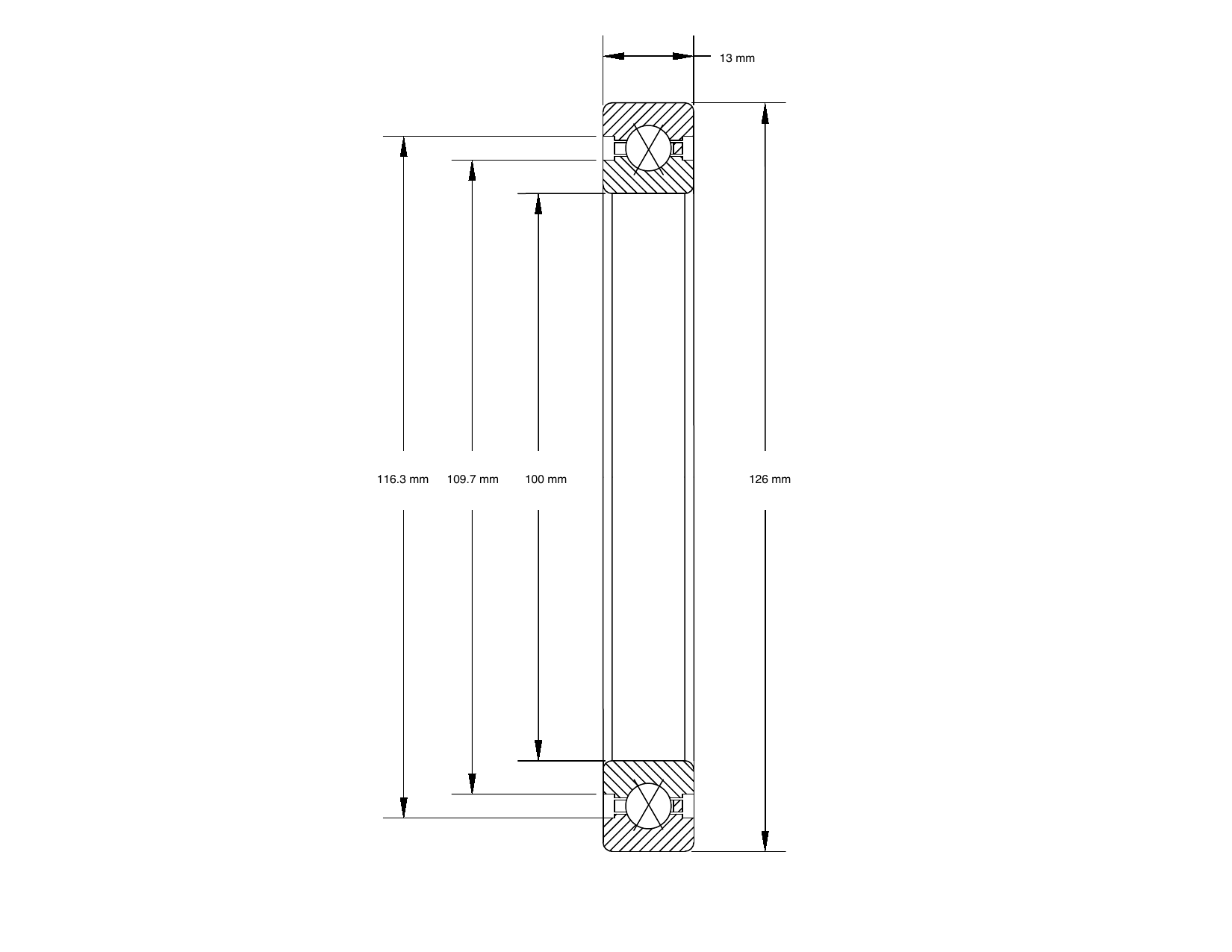

PRIUS BEARINGSMECHANICAL DRAWING · K10013XP0UNITS: mm · SCALE: NTS
PRIUS BEARINGS K10013XP0 dimensioned mechanical drawing
PART NUMBERK10013XP0
BORE / d100 mm
O.D. / D126 mm
WIDTH / B13 mm
L1 / L2 / L3109.7 mm / 116.3 mm / —
TYPEType X · Open · Four-point contact
DYNAMIC RADIAL LOAD12543
STATIC RADIAL LOAD41198
DYNAMIC THRUST LOAD18691
STATIC THRUST LOAD931
WEIGHT0.34 kg

TECHNICAL DATA

Specification
at a glance.

Bore100 mm
Outside diameter126 mm
Radial section13 mm
L1 land diameter109.7 mm
L2 land diameter116.3 mm
L3 counterbore—
Dynamic radial capacity12543
Dynamic thrust capacity18691
Static radial capacity41198
Static thrust capacity931
MaterialAISI 52100 steel
SeparatorType A circular pocket
PrecisionKaydon Precision Class 1 / ABEC-1F or better
Temperature range-54°C to +121°C
Weight0.34 kg
