Thin Section Bearings/13 mm Series/K10020XP0

13 mm Series · Type X · Open · Four-point contact

K10020XP0
thin section bearing

Metric thin section bearing from the Reali-Slim selection tables.

Request a quote →Back to all models
PRIUS BEARINGS K10020XP0 open thin section bearingOPEN / K10020XP0

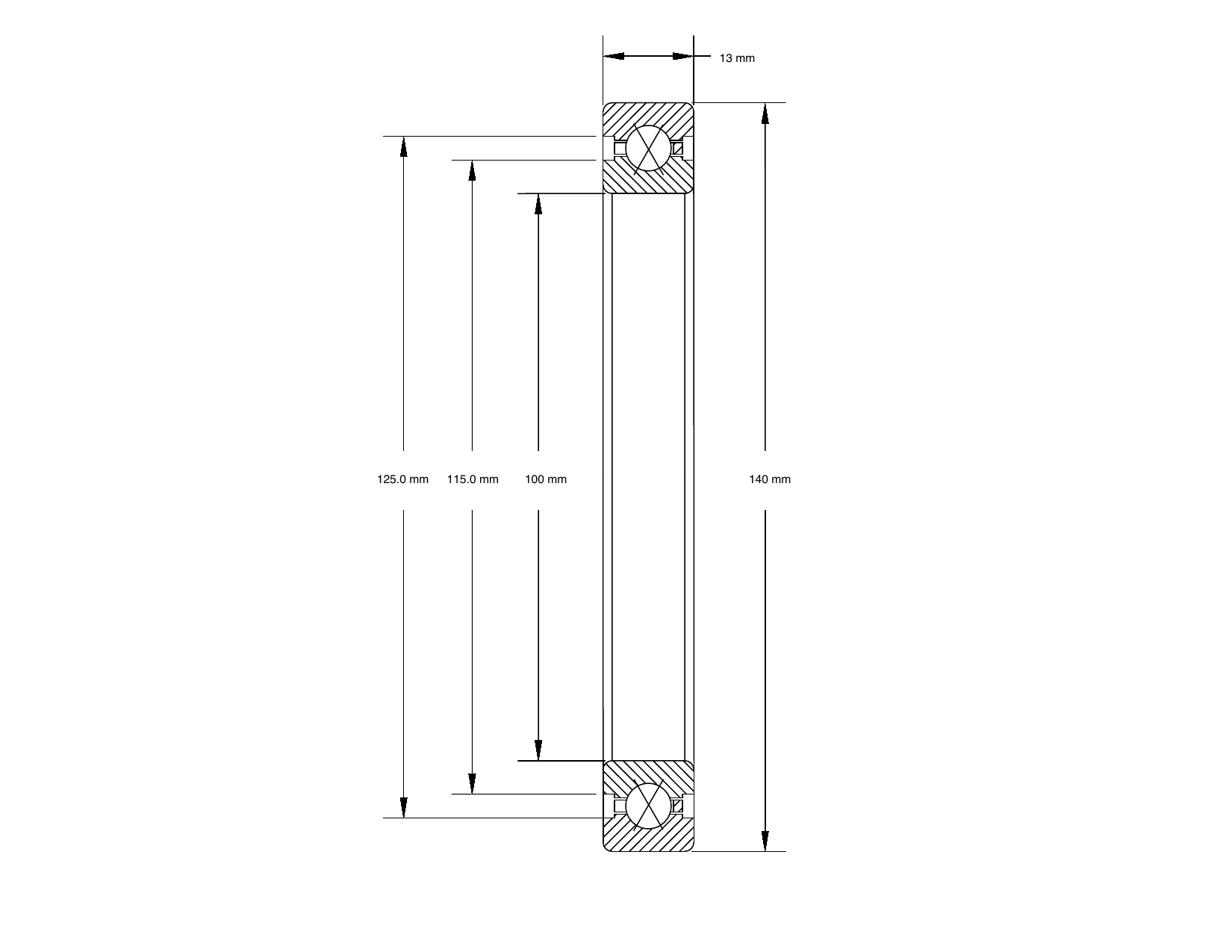

PRIUS BEARINGSMECHANICAL DRAWING · K10020XP0UNITS: mm · SCALE: NTS
PRIUS BEARINGS K10020XP0 dimensioned mechanical drawing
PART NUMBERK10020XP0
BORE / d100 mm
O.D. / D140 mm
WIDTH / B13 mm
L1 / L2 / L3115.0 mm / 125.0 mm / —
TYPEType X · Open · Four-point contact
DYNAMIC RADIAL LOAD22781
STATIC RADIAL LOAD64185
DYNAMIC THRUST LOAD32921
STATIC THRUST LOAD1540
WEIGHT0.87 kg

TECHNICAL DATA

Specification
at a glance.

Bore100 mm
Outside diameter140 mm
Radial section13 mm
L1 land diameter115.0 mm
L2 land diameter125.0 mm
L3 counterbore—
Dynamic radial capacity22781
Dynamic thrust capacity32921
Static radial capacity64185
Static thrust capacity1540
MaterialAISI 52100 steel
SeparatorType A circular pocket
PrecisionKaydon Precision Class 1 / ABEC-1F or better
Temperature range-54°C to +121°C
Weight0.87 kg

FIND YOUR FIT

Related models.

Open full selector ↗
Type X · Open · Four-point contactK10013XP0d 100 mm · D 126 mm · 12543 radialType X · Open · Four-point contactK09020XP0d 90 mm · D 130 mm · 22192 radialType X · Open · Four-point contactK11020XP0d 110 mm · D 150 mm · 24183 radialType X · Open · Four-point contactK09013XP0d 90 mm · D 116 mm · 12003 radial
