8 mm Series · Type C · Sealed · Radial contact
K32008CP0
thin section bearing
Metric thin section bearing from the Reali-Slim selection tables.

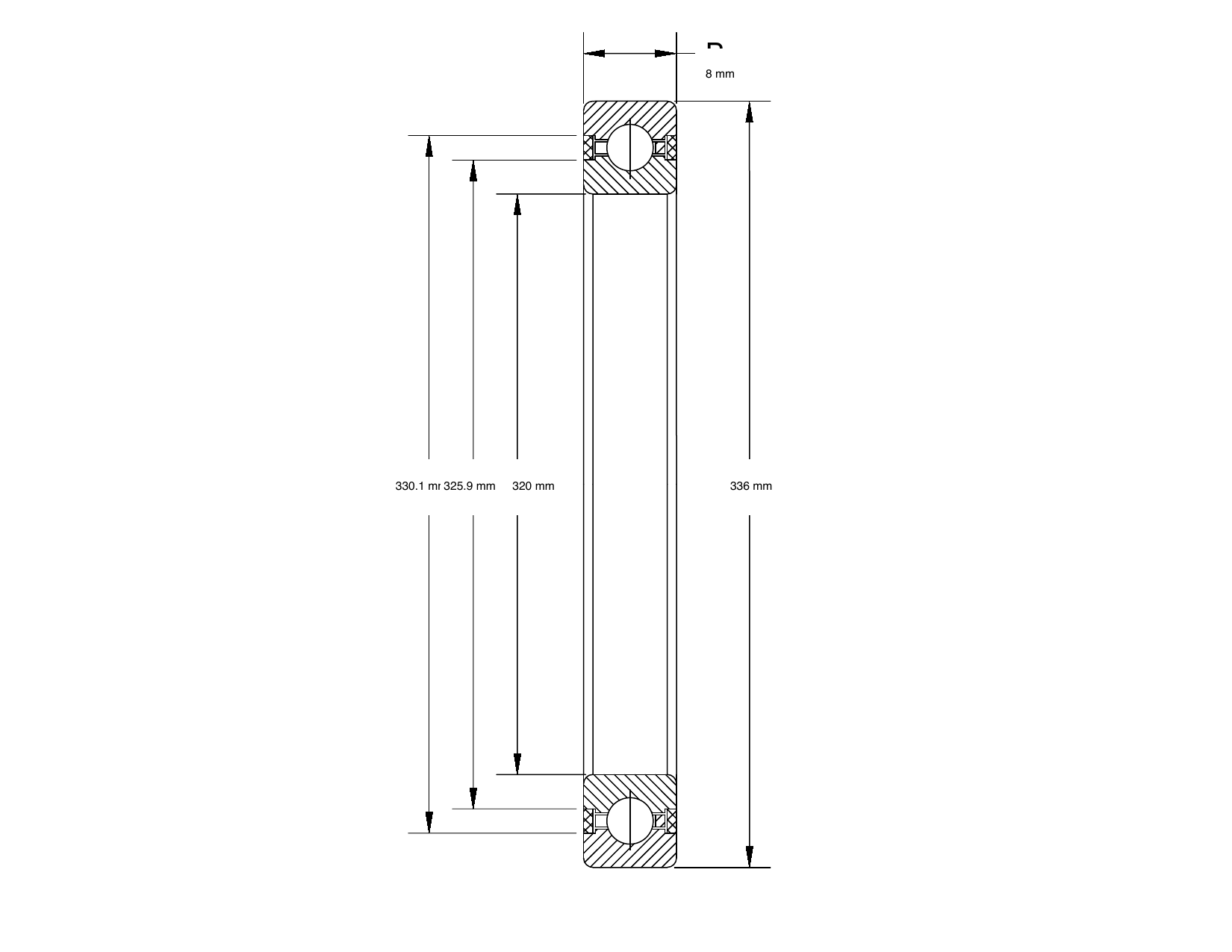

SEALED / K32008CP0PRIUS BEARINGSMECHANICAL DRAWING · K32008CP0UNITS: mm · SCALE: NTS
PART NUMBERK32008CP0
BORE / d320 mm
O.D. / D336 mm
WIDTH / B8 mm
L1 / L2 / L3325.9 mm / 330.1 mm / —
TYPEType C · Sealed · Radial contact
DYNAMIC RADIAL LOAD9660
STATIC RADIAL LOAD31940
DYNAMIC THRUST LOADN/A
STATIC THRUST LOADN/A
WEIGHT0.39 kg
TECHNICAL DATA
Specification
at a glance.
Bore320 mm
Outside diameter336 mm
Radial section8 mm
L1 land diameter325.9 mm
L2 land diameter330.1 mm
L3 counterbore—
Dynamic radial capacity9660
Dynamic thrust capacityN/A
Static radial capacity31940
Static thrust capacityN/A
MaterialAISI 52100 steel
SeparatorType A circular pocket
PrecisionKaydon Precision Class 1 / ABEC-1F or better
Temperature range-54°C to +121°C
Weight0.39 kg
