8 mm Series · Type C · Sealed · Radial contact
K34008CP0
thin section bearing
Metric thin section bearing from the Reali-Slim selection tables.

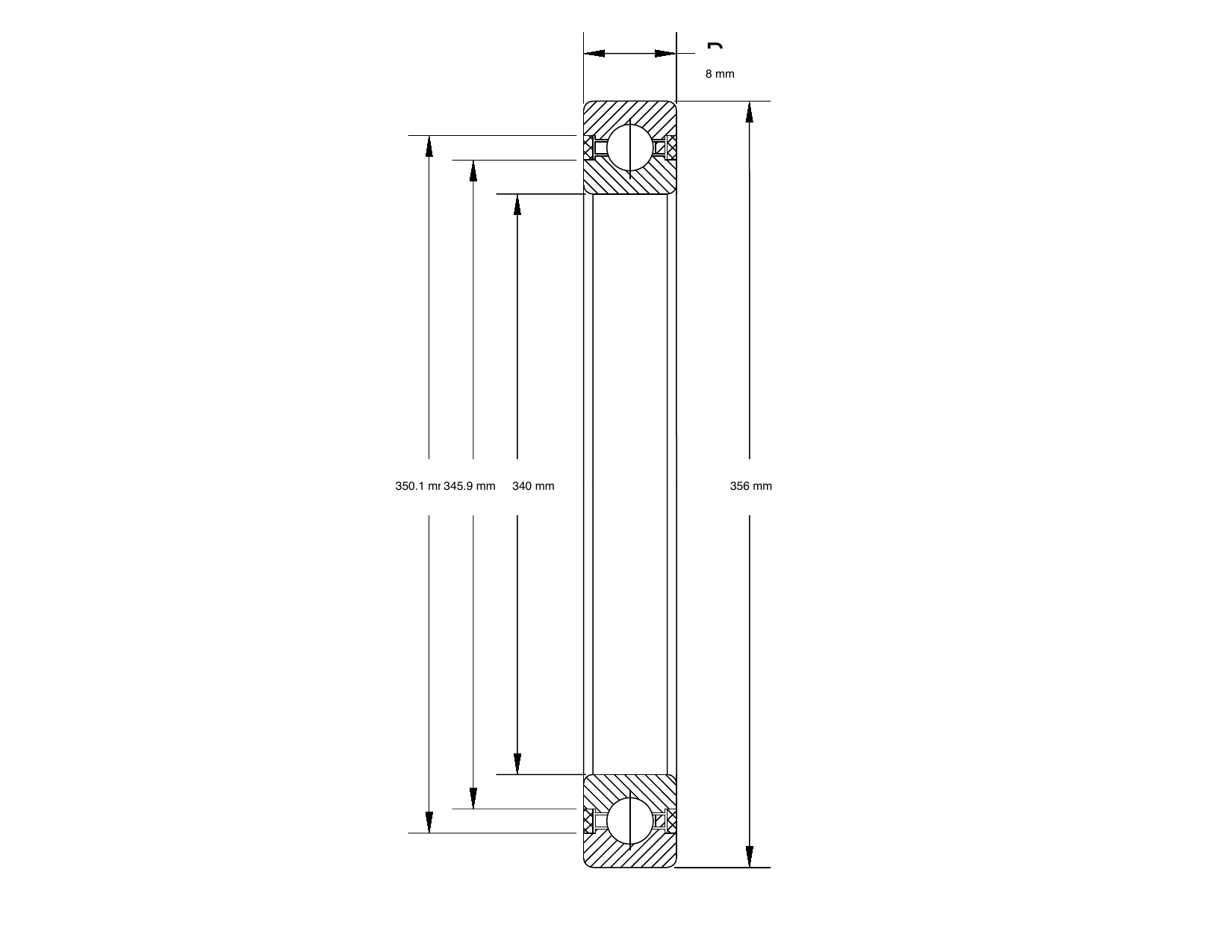

SEALED / K34008CP0PRIUS BEARINGSMECHANICAL DRAWING · K34008CP0UNITS: mm · SCALE: NTS
PART NUMBERK34008CP0
BORE / d340 mm
O.D. / D356 mm
WIDTH / B8 mm
L1 / L2 / L3345.9 mm / 350.1 mm / —
TYPEType C · Sealed · Radial contact
DYNAMIC RADIAL LOAD9964
STATIC RADIAL LOAD33921
DYNAMIC THRUST LOADN/A
STATIC THRUST LOADN/A
WEIGHT0.42 kg
TECHNICAL DATA
Specification
at a glance.
Bore340 mm
Outside diameter356 mm
Radial section8 mm
L1 land diameter345.9 mm
L2 land diameter350.1 mm
L3 counterbore—
Dynamic radial capacity9964
Dynamic thrust capacityN/A
Static radial capacity33921
Static thrust capacityN/A
MaterialAISI 52100 steel
SeparatorType A circular pocket
PrecisionKaydon Precision Class 1 / ABEC-1F or better
Temperature range-54°C to +121°C
Weight0.42 kg
INDEPENDENT ALTERNATIVE MANUFACTURER
Need a direct replacement
for K34008CP0?
Share your drawing, duty cycle or existing part number. We will review fit, load and availability before quoting.
Talk to an engineer →Brand names and part numbers are used for identification and cross-reference only. PRIUS BEARINGS is not affiliated with the original trademark owner.
