8 mm Series · Type C · Sealed · Radial contact
K36008CP0
thin section bearing
Metric thin section bearing from the Reali-Slim selection tables.

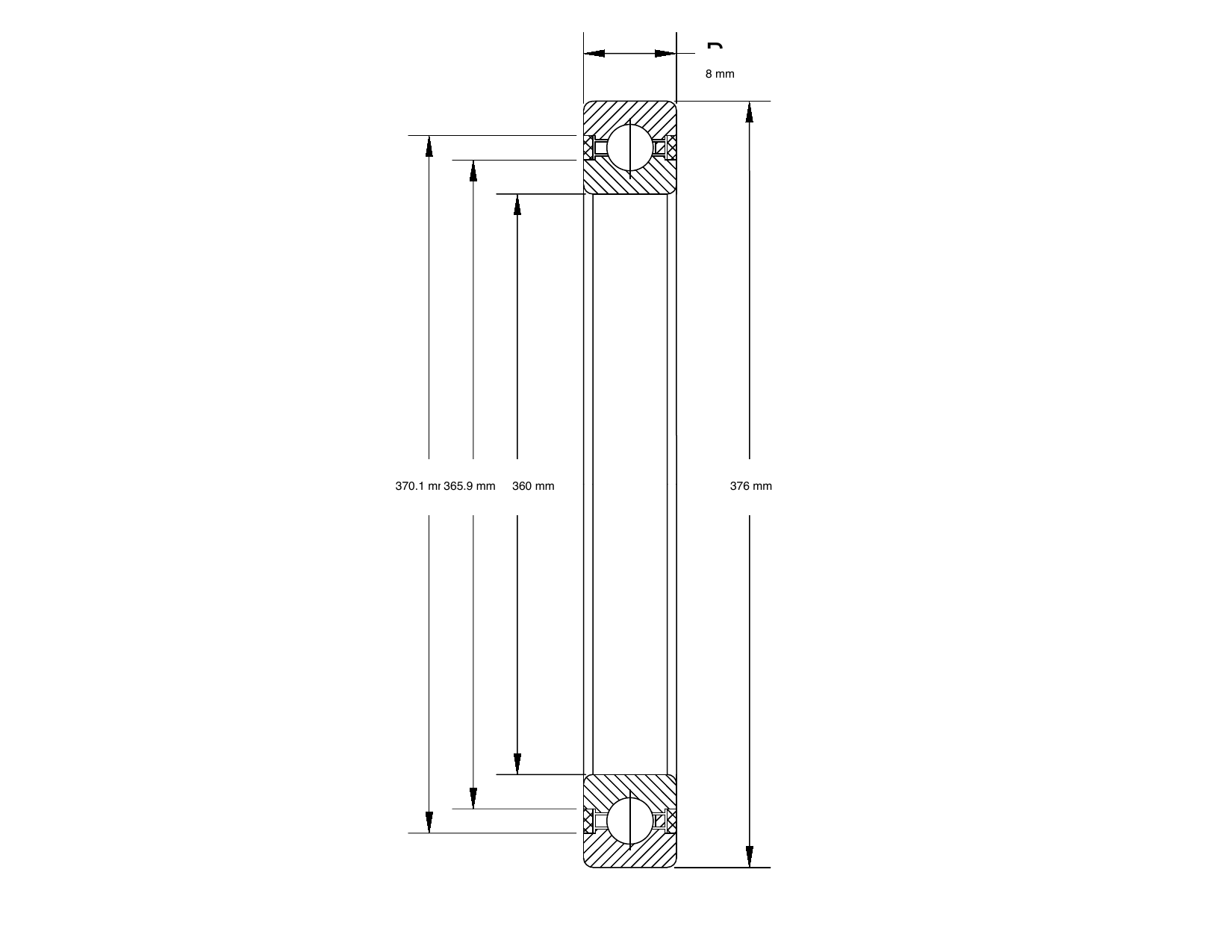

SEALED / K36008CP0PRIUS BEARINGSMECHANICAL DRAWING · K36008CP0UNITS: mm · SCALE: NTS
PART NUMBERK36008CP0
BORE / d360 mm
O.D. / D376 mm
WIDTH / B8 mm
L1 / L2 / L3365.9 mm / 370.1 mm / —
TYPEType C · Sealed · Radial contact
DYNAMIC RADIAL LOAD10297
STATIC RADIAL LOAD35657
DYNAMIC THRUST LOADN/A
STATIC THRUST LOADN/A
WEIGHT0.46 kg
TECHNICAL DATA
Specification
at a glance.
Bore360 mm
Outside diameter376 mm
Radial section8 mm
L1 land diameter365.9 mm
L2 land diameter370.1 mm
L3 counterbore—
Dynamic radial capacity10297
Dynamic thrust capacityN/A
Static radial capacity35657
Static thrust capacityN/A
MaterialAISI 52100 steel
SeparatorType A circular pocket
PrecisionKaydon Precision Class 1 / ABEC-1F or better
Temperature range-54°C to +121°C
Weight0.46 kg
INDEPENDENT ALTERNATIVE MANUFACTURER
Need a direct replacement
for K36008CP0?
Share your drawing, duty cycle or existing part number. We will review fit, load and availability before quoting.
